Battery Positive Cable Replacement

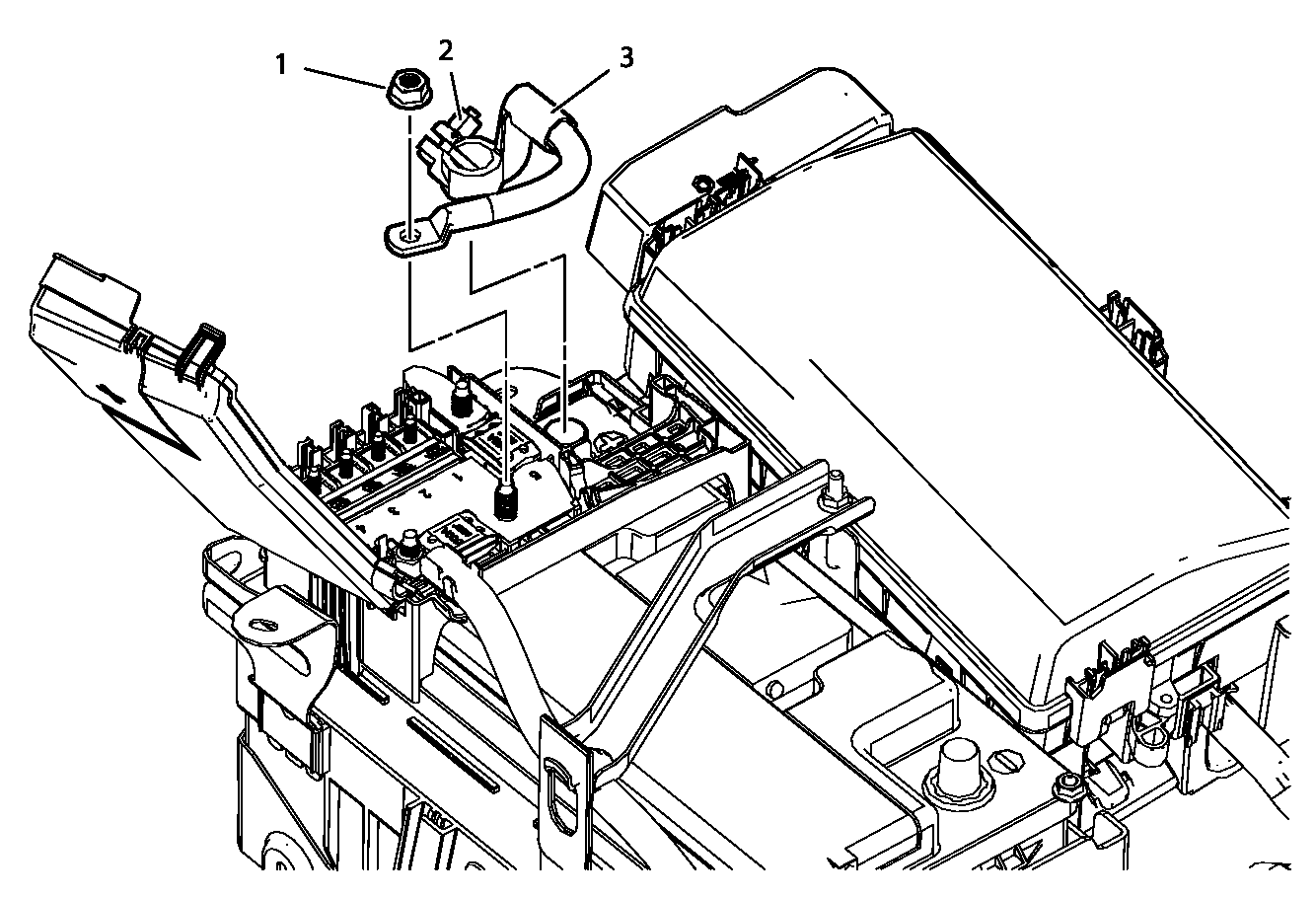

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . |
|
| 1 | Battery Positive Cable to Fuse Box Nut
CAUTION:
Refer to Fastener Caution
.
Tighten: 9 N.m (80 lb in) |
| 2 | Battery Positive Cable to Battery Nut Tighten: 4.5 N.m(40 lb in) |
| 3 | Battery Positive from Battery to Fuse Box Cable |
