Front Compartment Fuse Block Housing Replacement

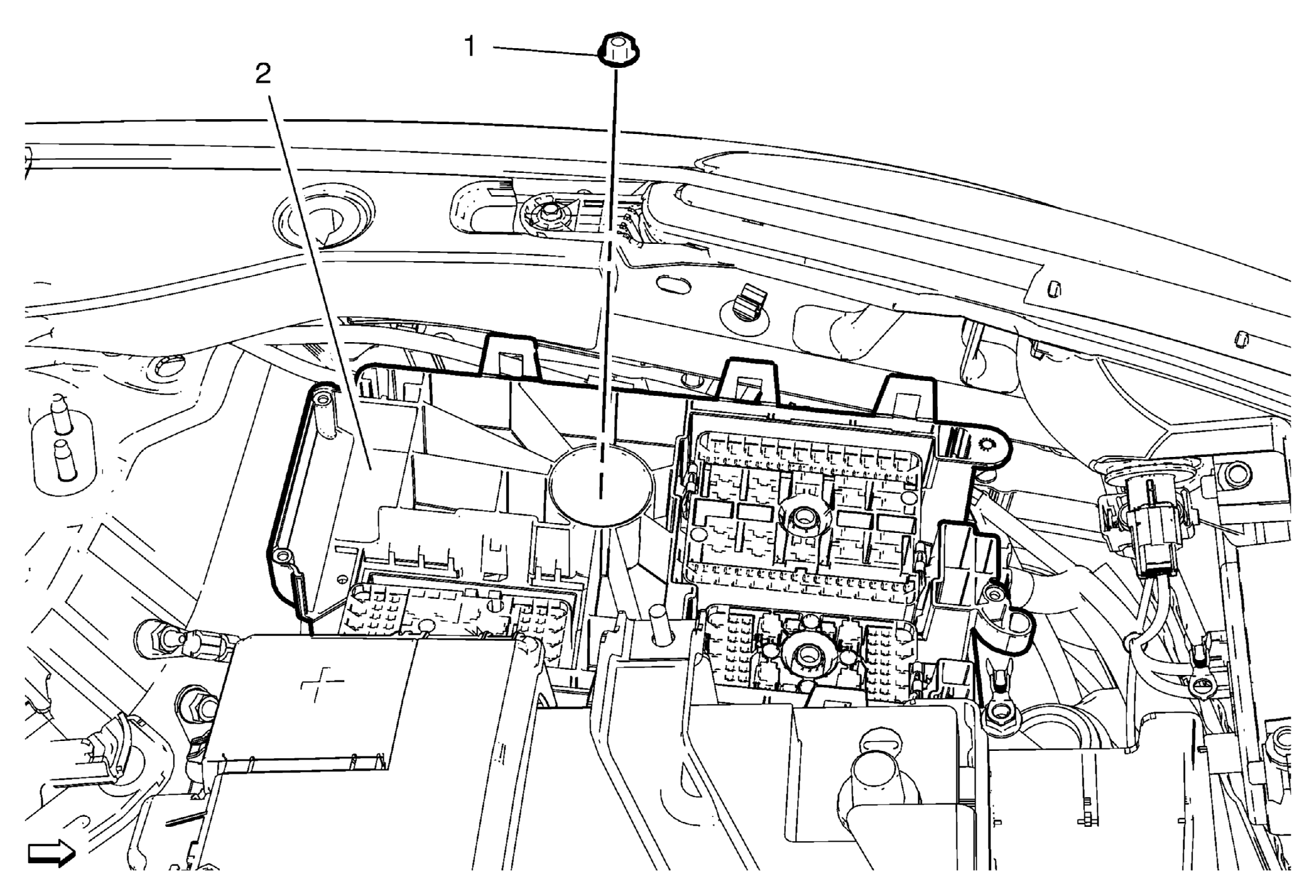

Fig 1: Identifying Front Compartment Fuse Block Housing And Nut
GM2371794Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove front compartment fuse block. Refer to Front Compartment Fuse Block Replacement .
1 Front Compartment Fuse Block Housing Nut
CAUTION: Refer to Fastener Caution .

Tighten: 22 N.m(16 lb ft)
2 Front Compartment Fuse Block Housing

Procedure

  1. Remove 3 electrical connectors from front compartment fuse block housing.
  2. Remove attaching parts.
