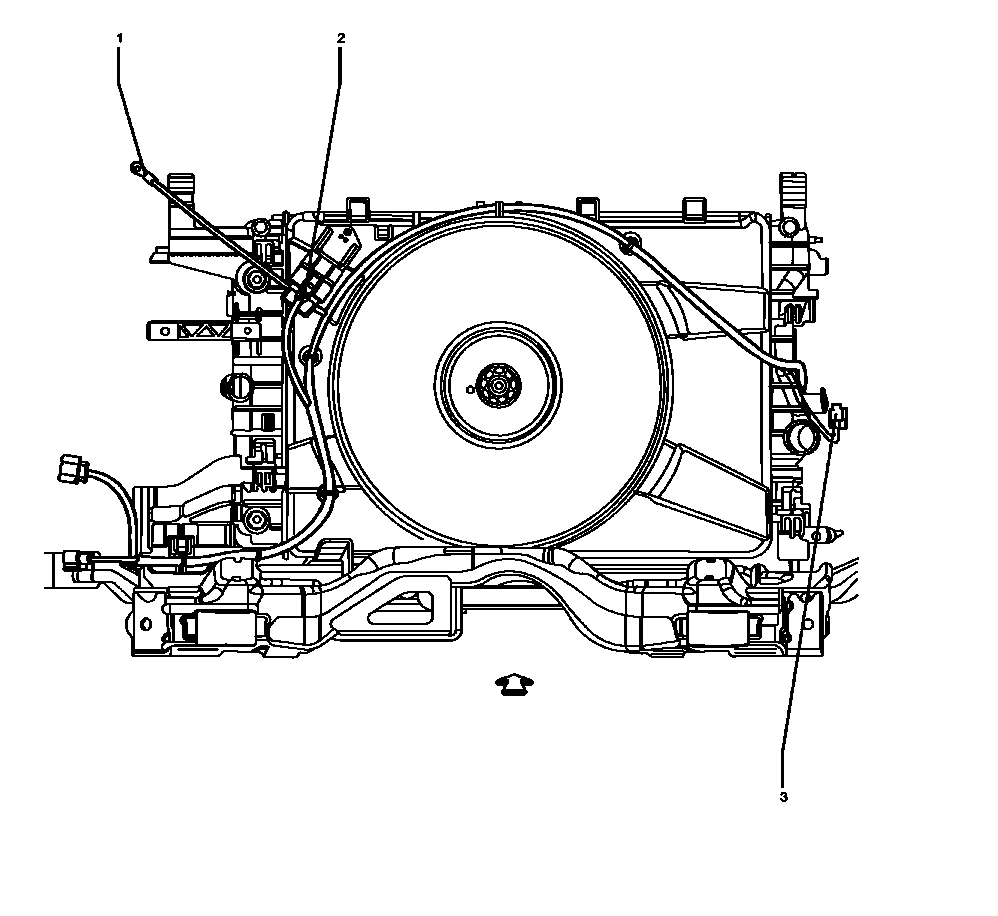

Identifying Front of the Engine Compartment Components
Identifying Front of the Engine Compartment Components
| Component Name |
Callout |
| G105 Engine Compartment - Front Left |
1 |
| G10 Cooling Fan Motor |
2 |
| B34B Engine Coolant Temperature Sensor 2 |
3 |
Courtesy of GENERAL MOTORS CORP.
