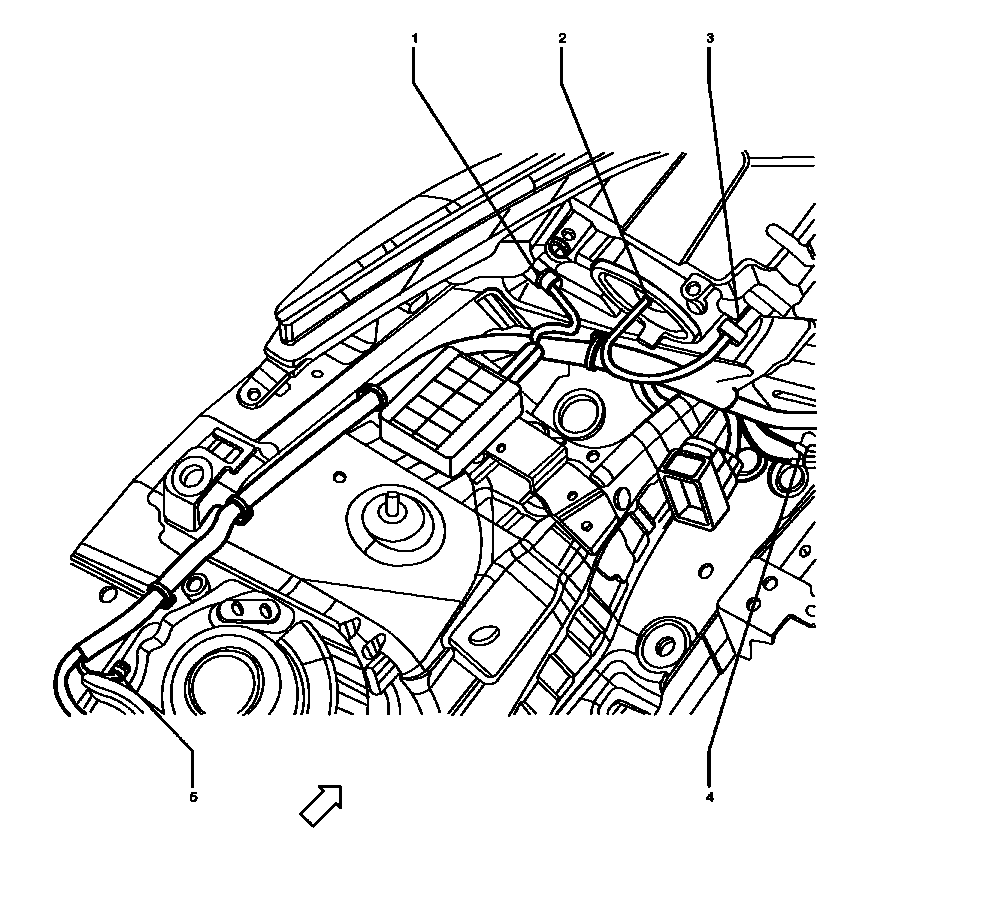

Identifying Left Front of the Vehicle Components
Identifying Left Front of the Vehicle Components
| Component Name |
Callout |
| E4N Park/Turn Signal Lamp - Left |
1 |
| E13L Headlamp Assembly - Left |
2 |
| M29L Headlamp Leveling Actuator - Left |
3 |
| G101 Engine Compartment - Front Left |
4 |
| G103 Engine Compartment - Front Left |
5 |
Courtesy of GENERAL MOTORS CORP.
