Electrical Component Locator - Instrument Panel/Center Console Component Views
›
Instrument Panel/Center Console Component Views
›
Identifying Center Console Components 2 of 5
Identifying Center Console Components 2 of 5
Identifying Center Console Components 2 of 5
Component Name
Callout
G307 Tunnel
1
B119 Multi-axis Acceleration Sensor
2

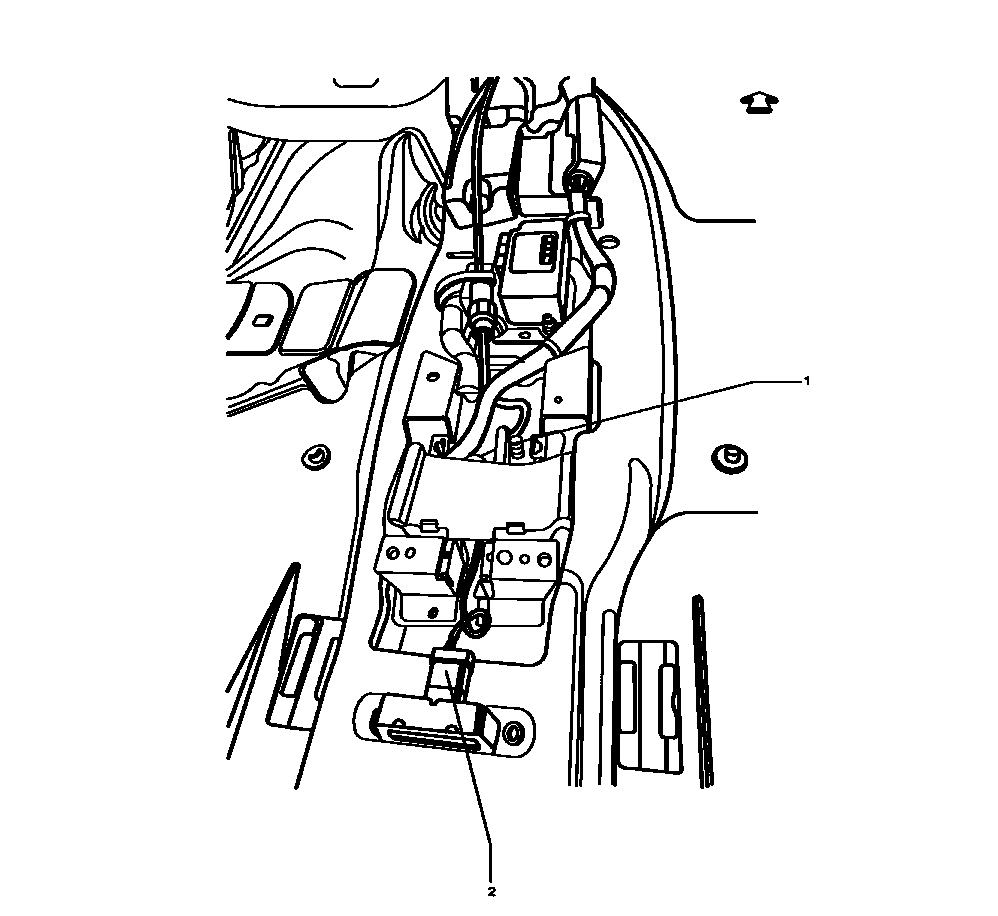

Fig 1: Identifying Center Console Components 2 of 5
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
