Instrument Panel/Center Console Component Views
›
Identifying Center Console Components 5 of 5
Identifying Center Console Components 5 of 5
Identifying Center Console Components 5 of 5
Component Name
Callout
E32F Cigar Lighter - Front
1
X80H Accessory Power Outlet - Center Console
2

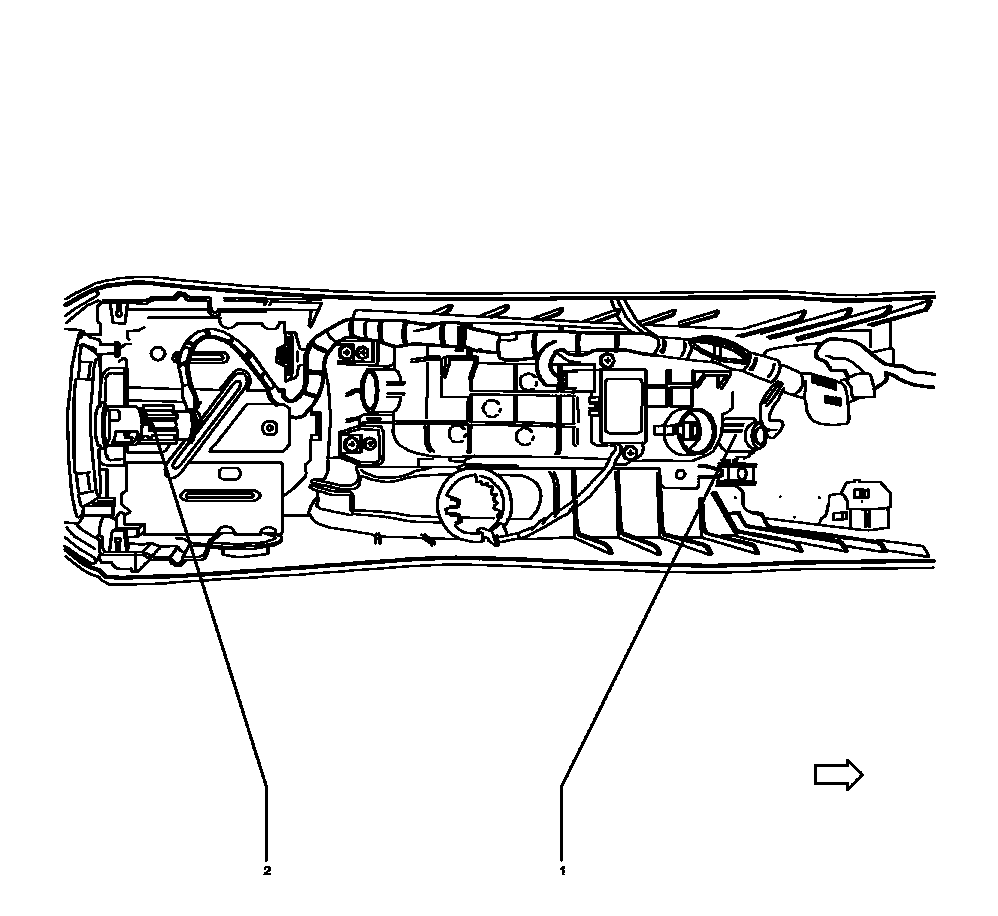

Fig 1: Identifying Center Console Components 5 of 5
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
