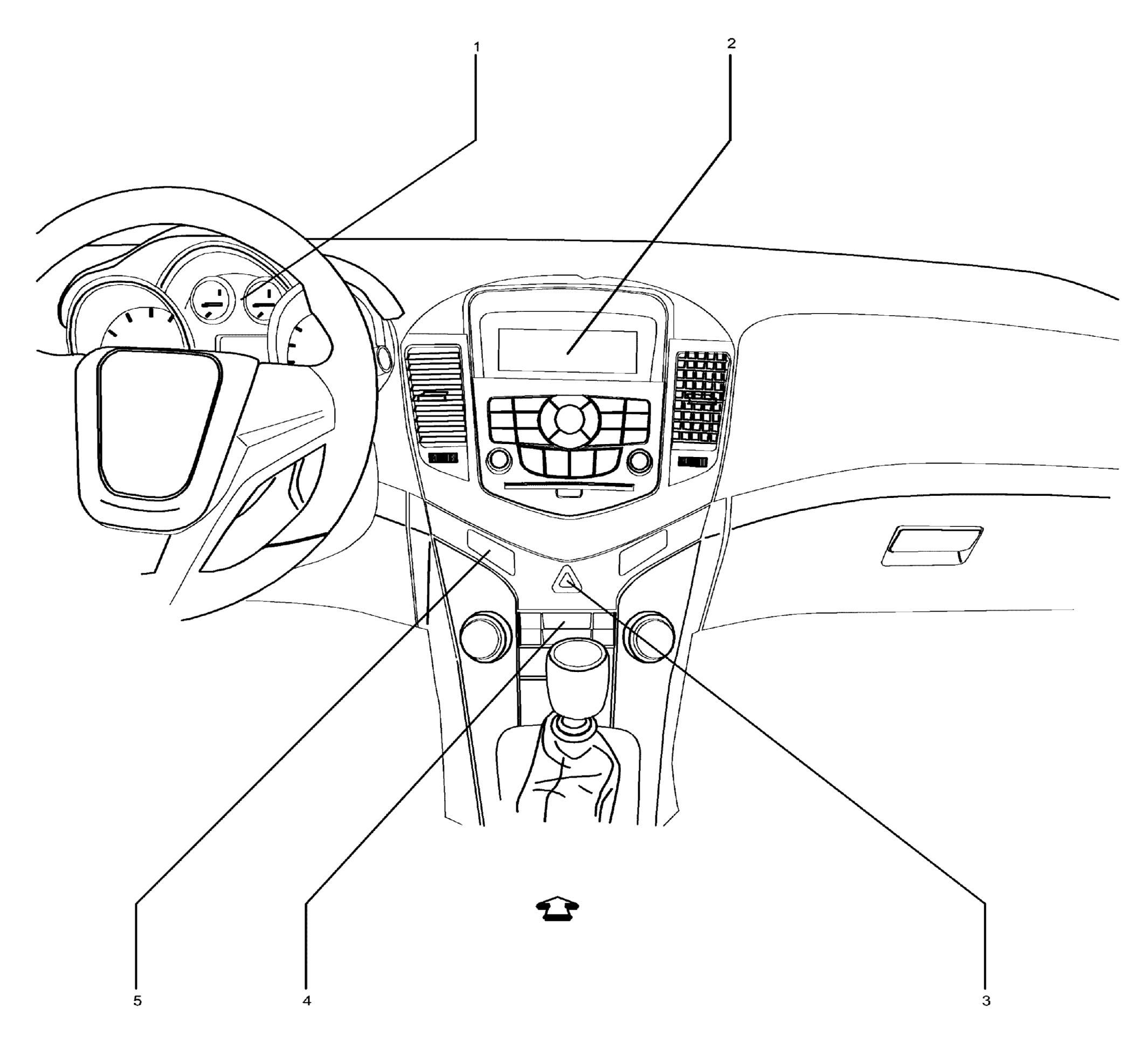

Identifying Center of the I/P Components
Identifying Center of the I/P Components
| Component Name |
Callout |
| P16 Instrument Cluster |
1 |
| P17 Info Display Module |
2 |
| S26 Hazard Lamps Switch |
3 |
| A26 HVAC Control |
4 |
| S13D Door Lock Switch - Driver |
5 |
Courtesy of GENERAL MOTORS CORP.
