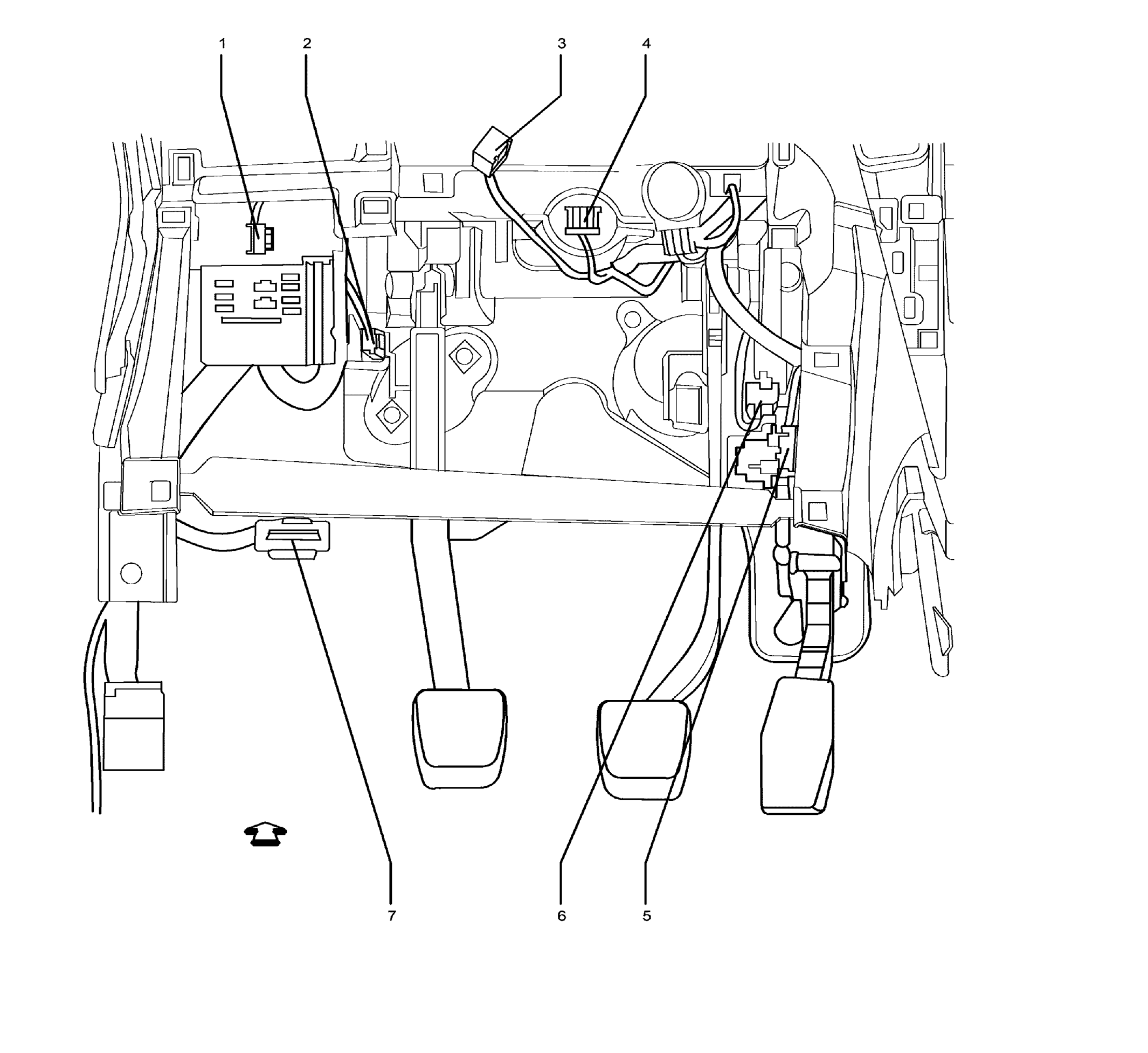

Identifying Lower Left of the I/P Components
Identifying Lower Left of the I/P Components
| Component Name | Callout |
|---|---|
| S30 Headlamp Switch | 1 |
| B25B Clutch Pedal Position Sensor | 2 |
| S78 Turn Signal / Multi-Function Switch | 3 |
| B99 Steering Wheel Angle Sensor | 4 |
| K89 Immobilizer Control Module | 5 |
| B107 Accelerator Pedal Position Sensor | 6 |
| B22 Brake Pedal Position Sensor | 7 |
