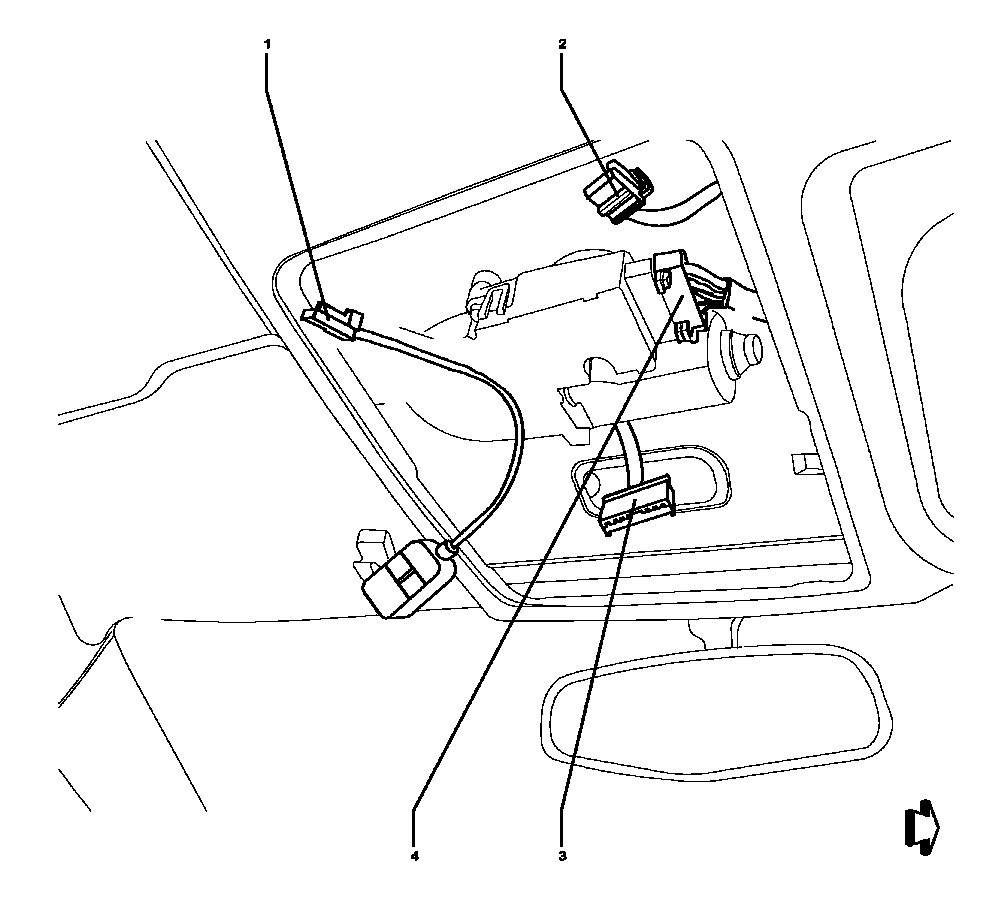

Identifying Overhead Console Components
Identifying Overhead Console Components
| Component Name |
Callout |
| S72 Sunroof Switch |
1 |
| S88 Sunroof Ventilation Switch |
2 |
| E37B Dome / Reading Lamps - 2nd Row |
3 |
| K61 Sunroof Control Module |
4 |
Courtesy of GENERAL MOTORS CORP.
