Steering Wheel Secondary/Configurable Control Wiring Schematics

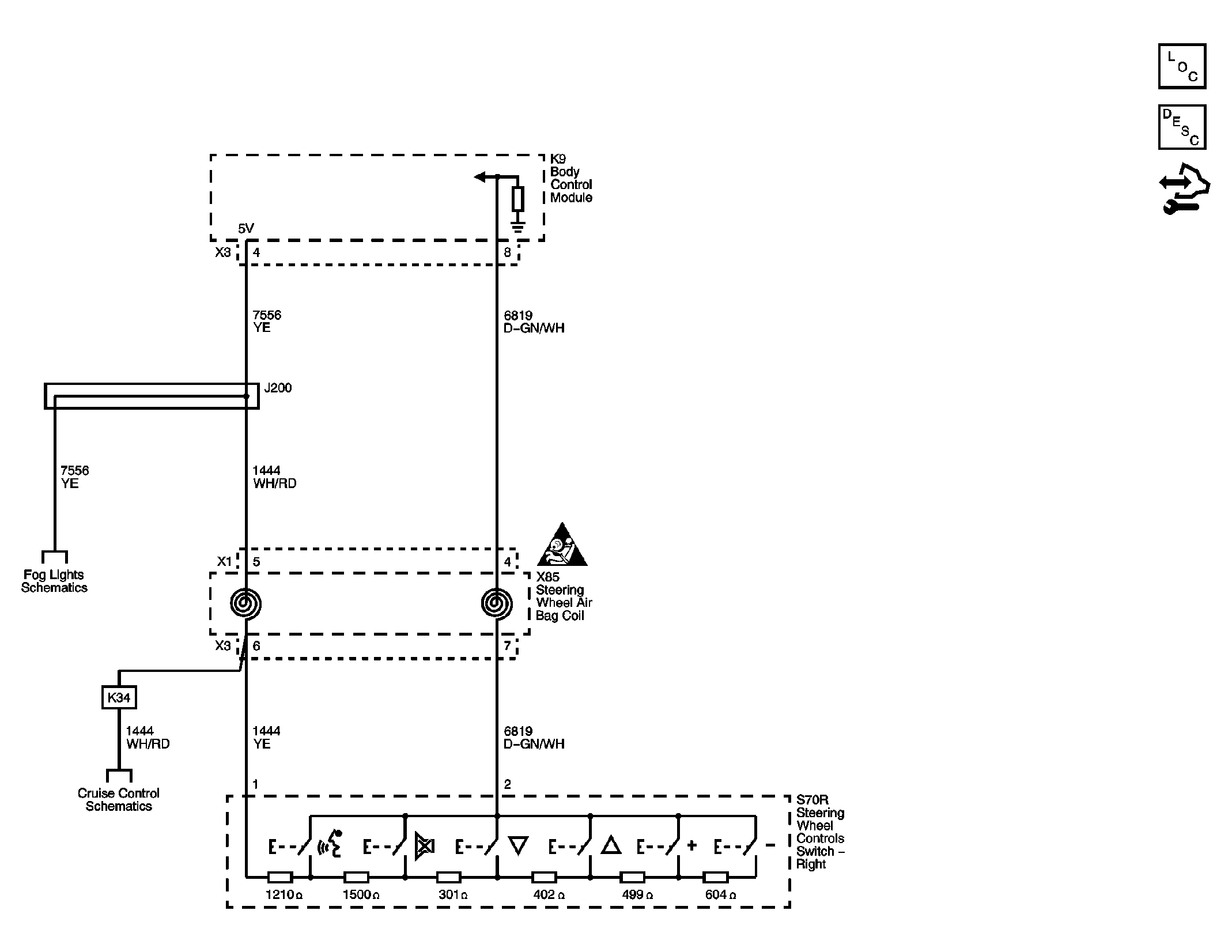

Fig 1: W1Y Wiring Schematic
GM2458145Courtesy of GENERAL MOTORS CORP.
