Moveable Window Schematics

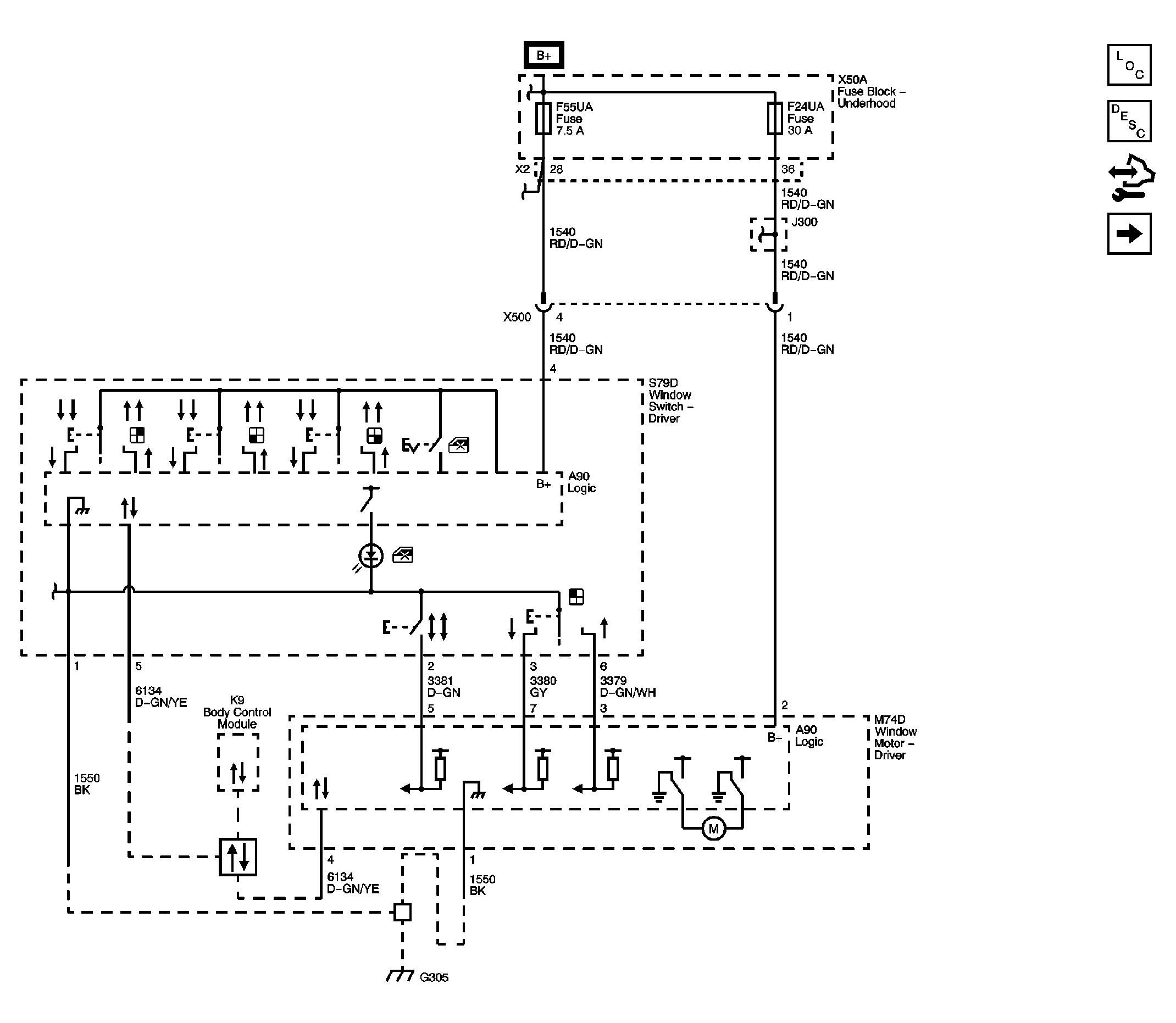

Fig 1: Driver Door Window Schematics (AXG)

Courtesy of GENERAL MOTORS CORP.

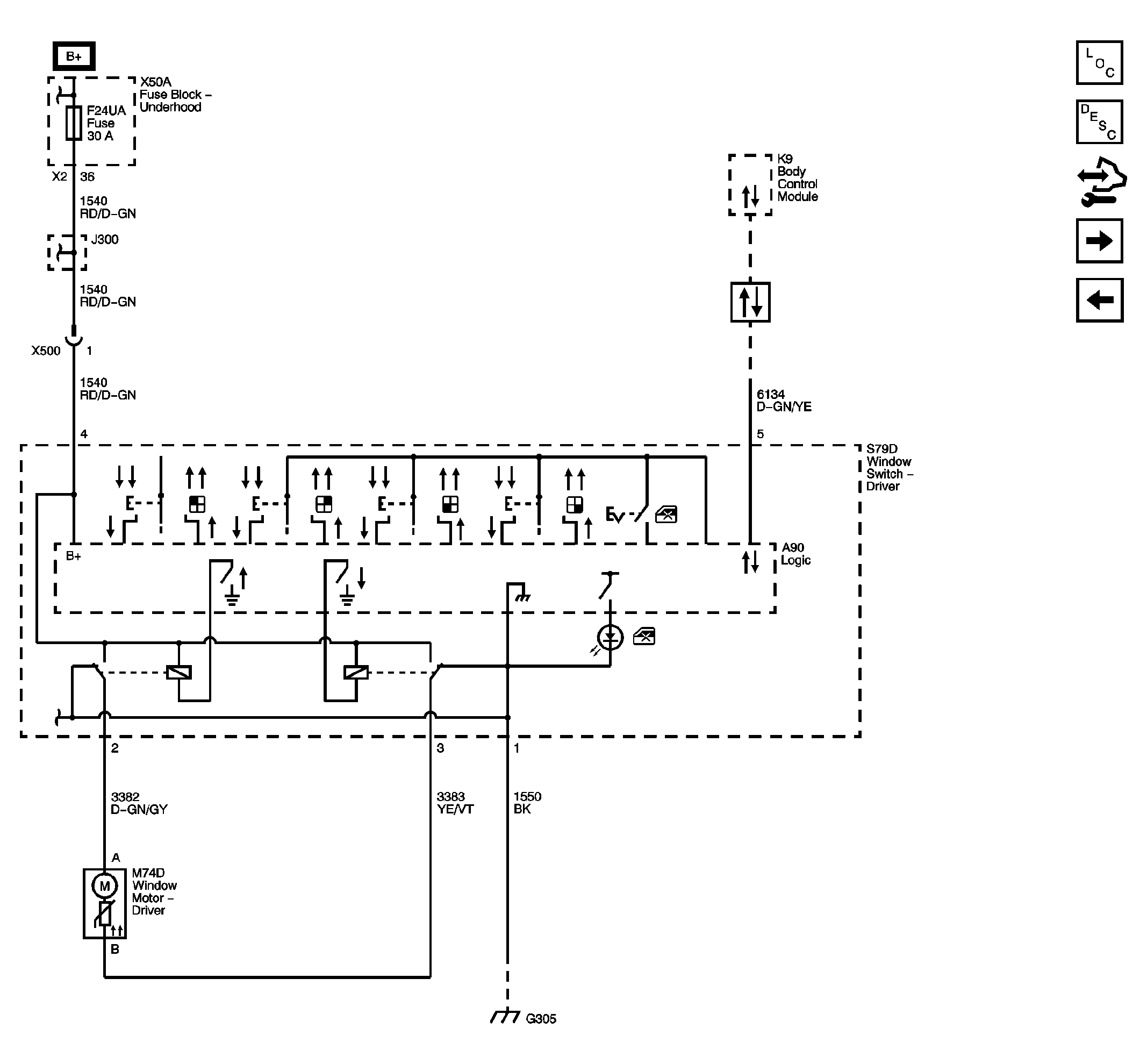

Fig 2: Driver Door Window Schematics (AEC)

Courtesy of GENERAL MOTORS CORP.

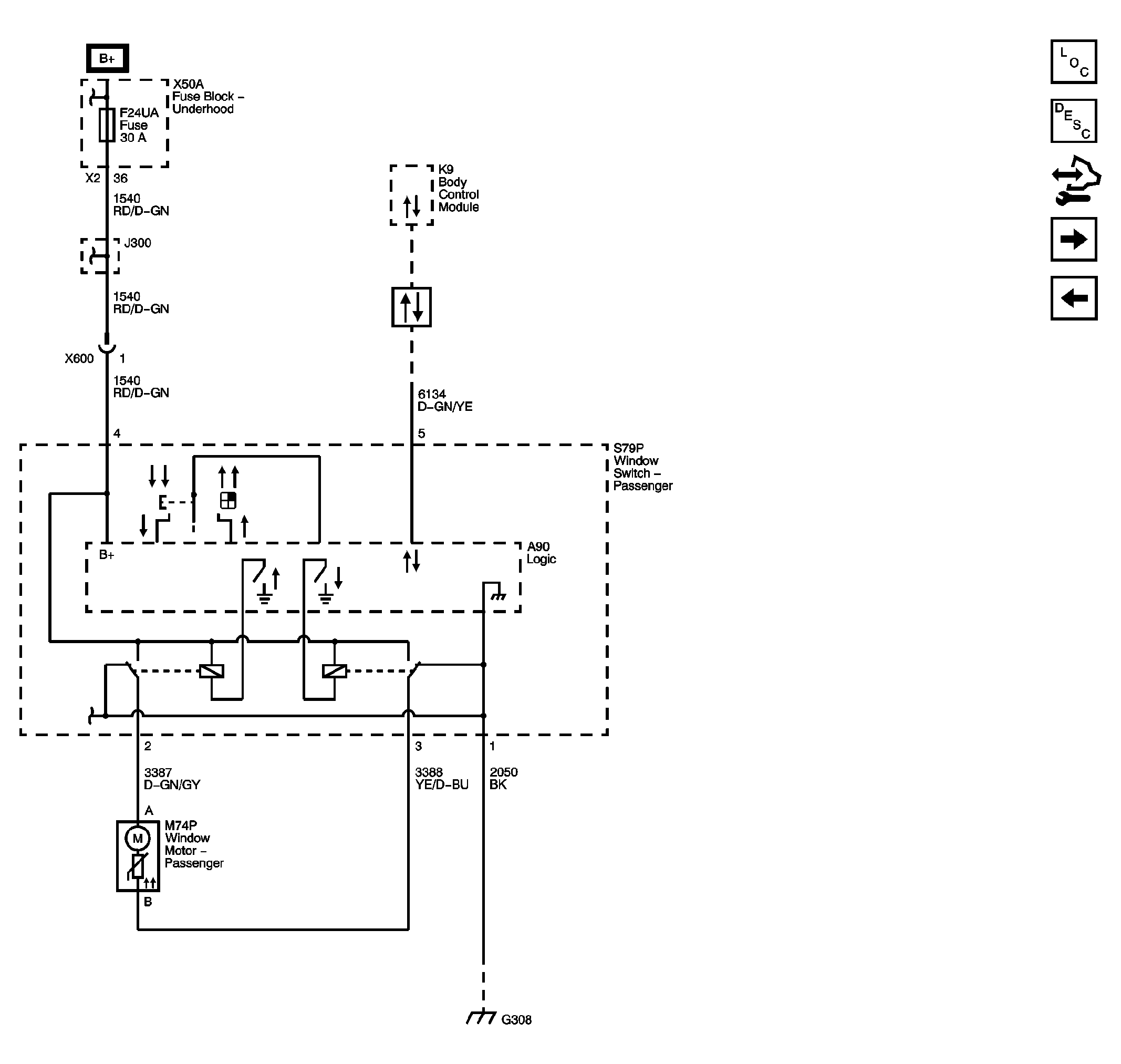

Fig 3: Passenger Door Window Schematics

Courtesy of GENERAL MOTORS CORP.

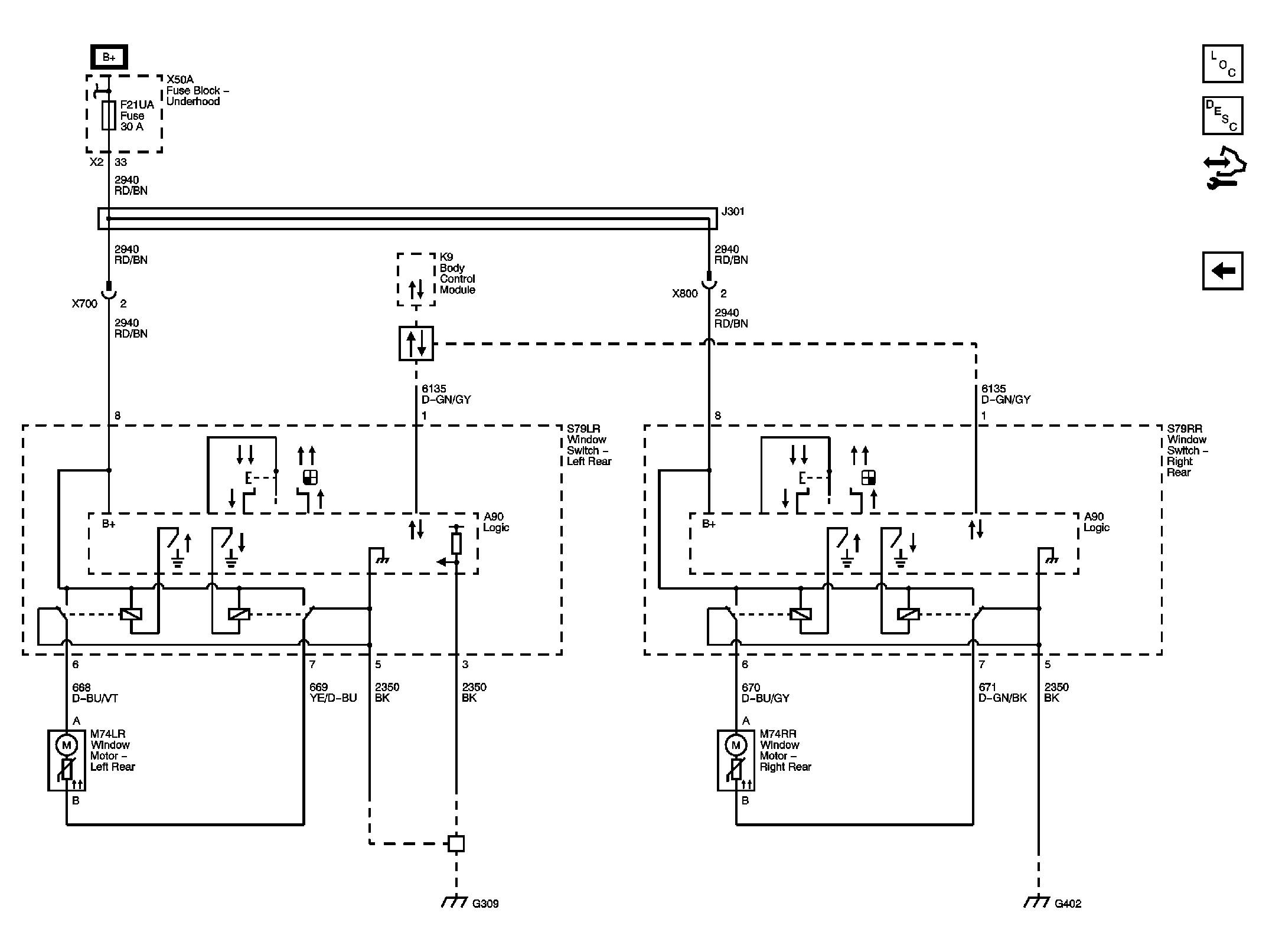

Fig 4: Rear Doors Window Schematics

Courtesy of GENERAL MOTORS CORP.
