Identifying Right Front of the Vehicle Components

Identifying Right Front of the Vehicle Components

Component Name Callout
M29R Headlamp Leveling Actuator - Right 1
E13R Headlamp Assembly - Right 2
E4P Park/Turn Signal Lamp - Right 3
G104 Engine Compartment - Front Right 4

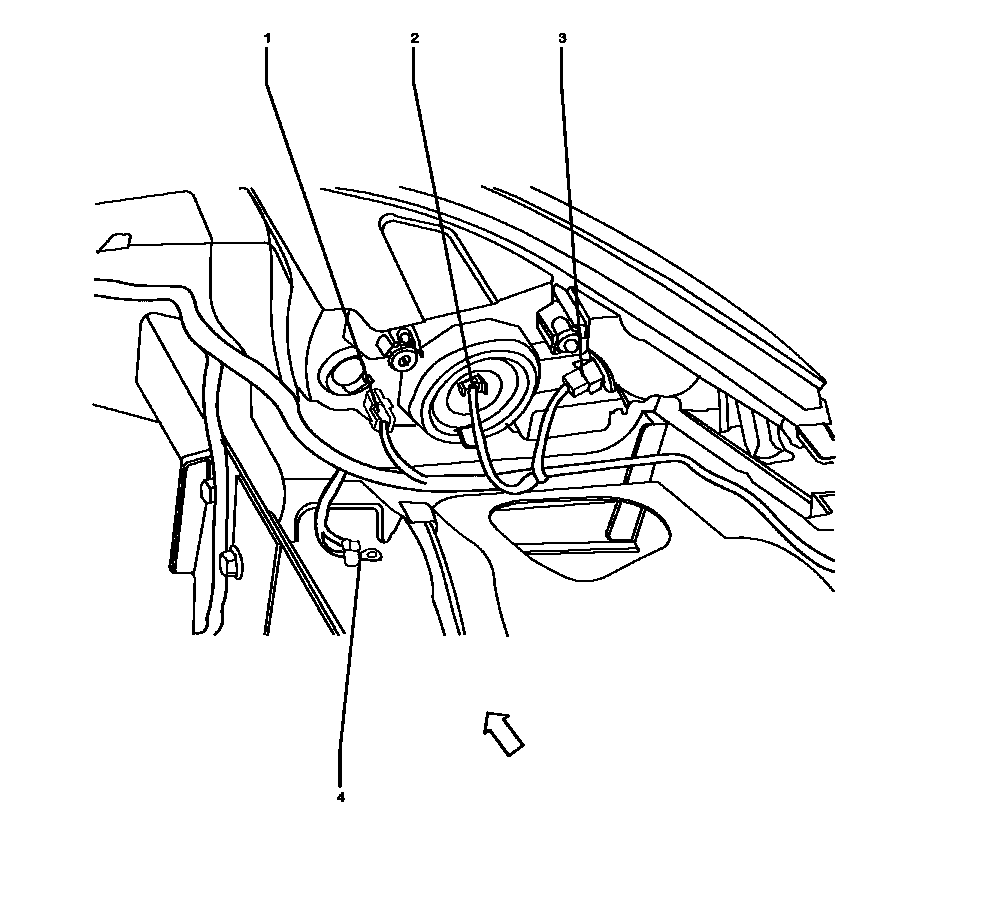

Fig 1: Identifying Right Front of the Vehicle Components
GM2205892Courtesy of GENERAL MOTORS CORP.
