Electrical Component Locator - Instrument Panel/Center Console Component Views
›
Instrument Panel/Center Console Component Views
›
Identifying Top of the Steering Column Components
Identifying Top of the Steering Column Components
Identifying Top of the Steering Column Components
Component Name
Callout
S70R Steering Wheel Controls Switch - Right
1

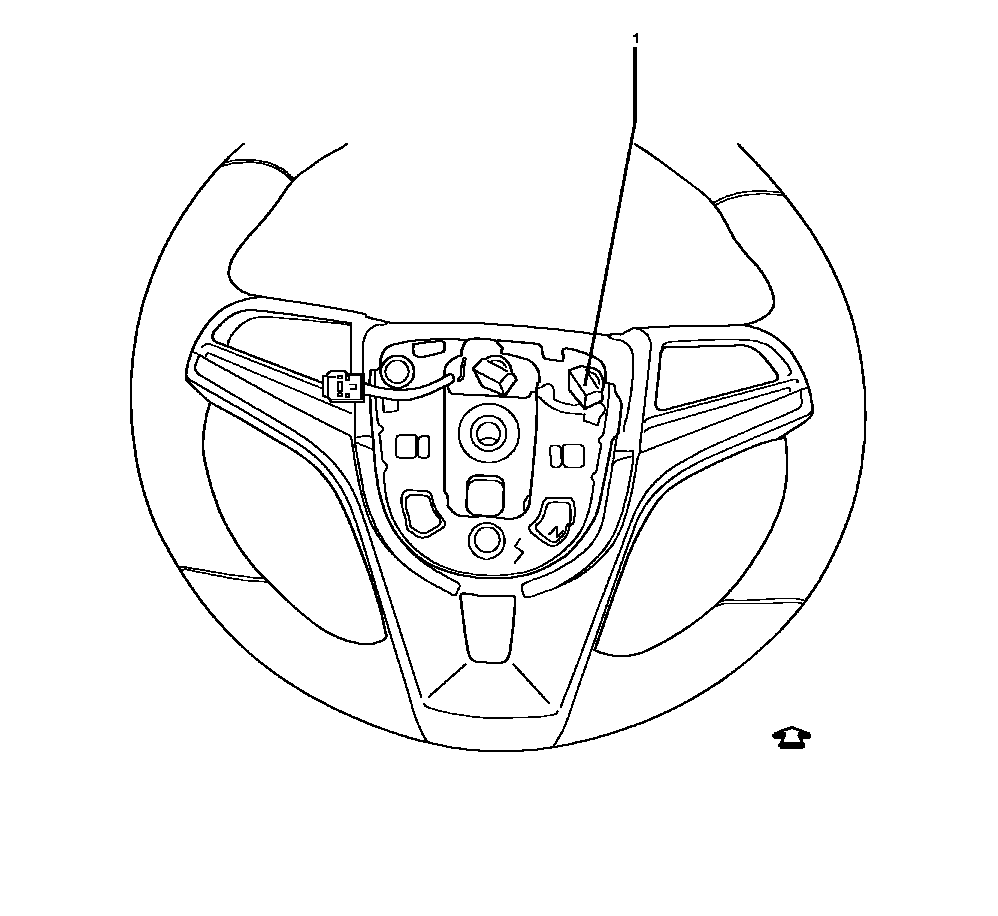

Fig 1: Identifying Top of the Steering Column Components
Courtesy of GENERAL MOTORS CORP.
