Data Communication Wiring Schematics
›
Communications Enable Wiring Schematics
Communications Enable Wiring Schematics

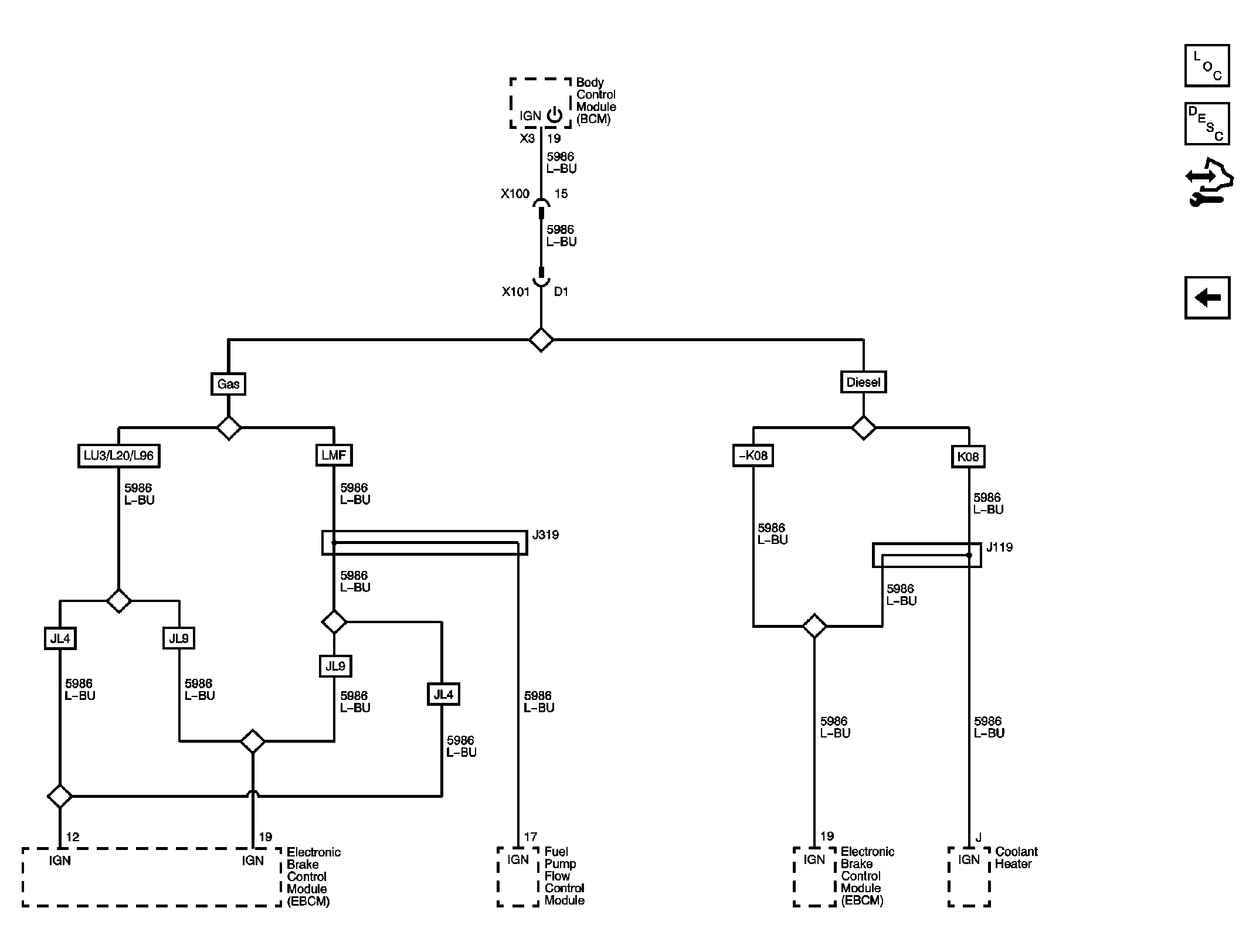

Fig 1: Communications Enable Wiring Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
