Installation Procedure

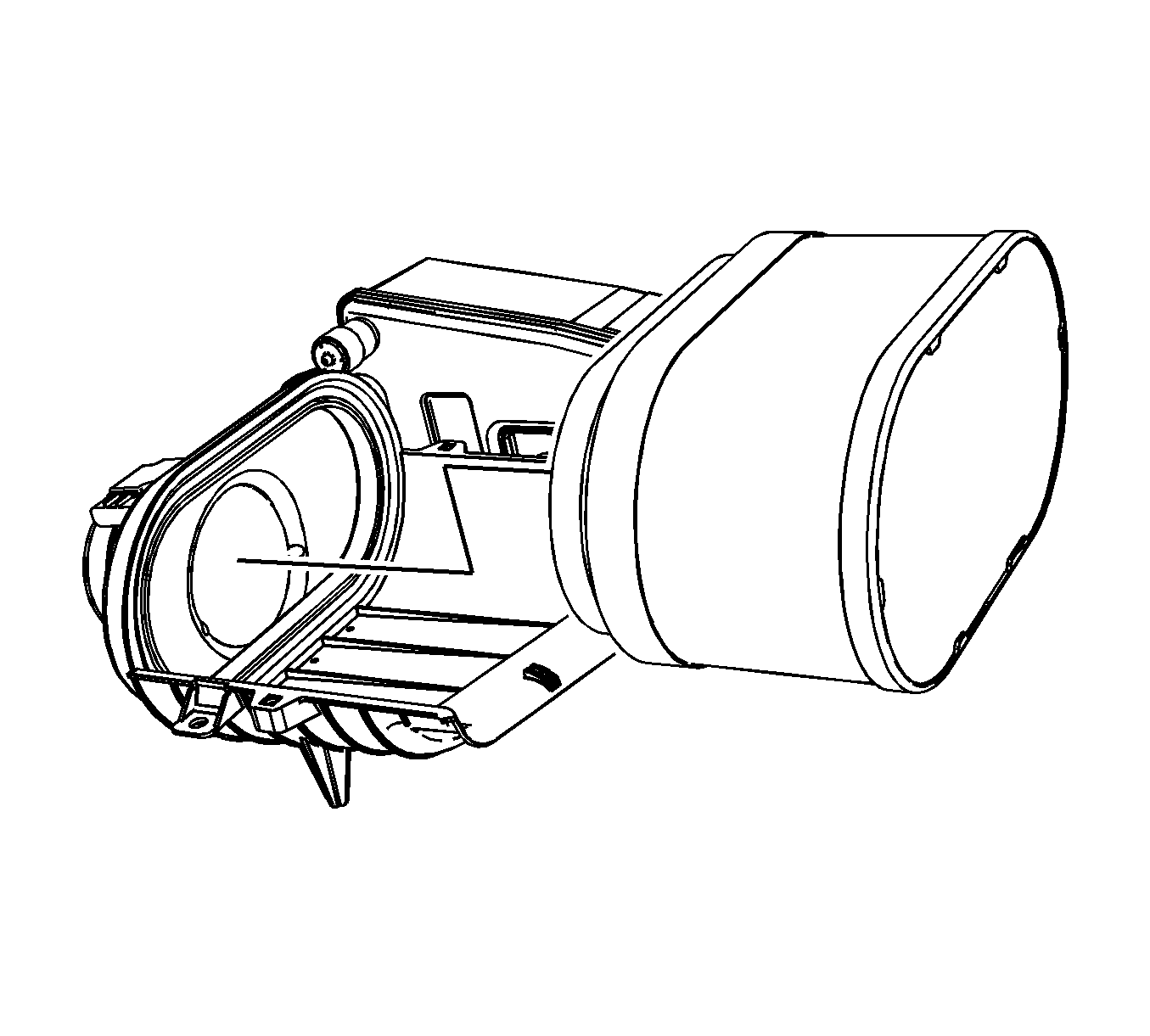

    Fig 1: Air Cleaner Element
    GM1661288Courtesy of GENERAL MOTORS CORP.
  1. Install the air cleaner element.
  2. Install the air cleaner cover.

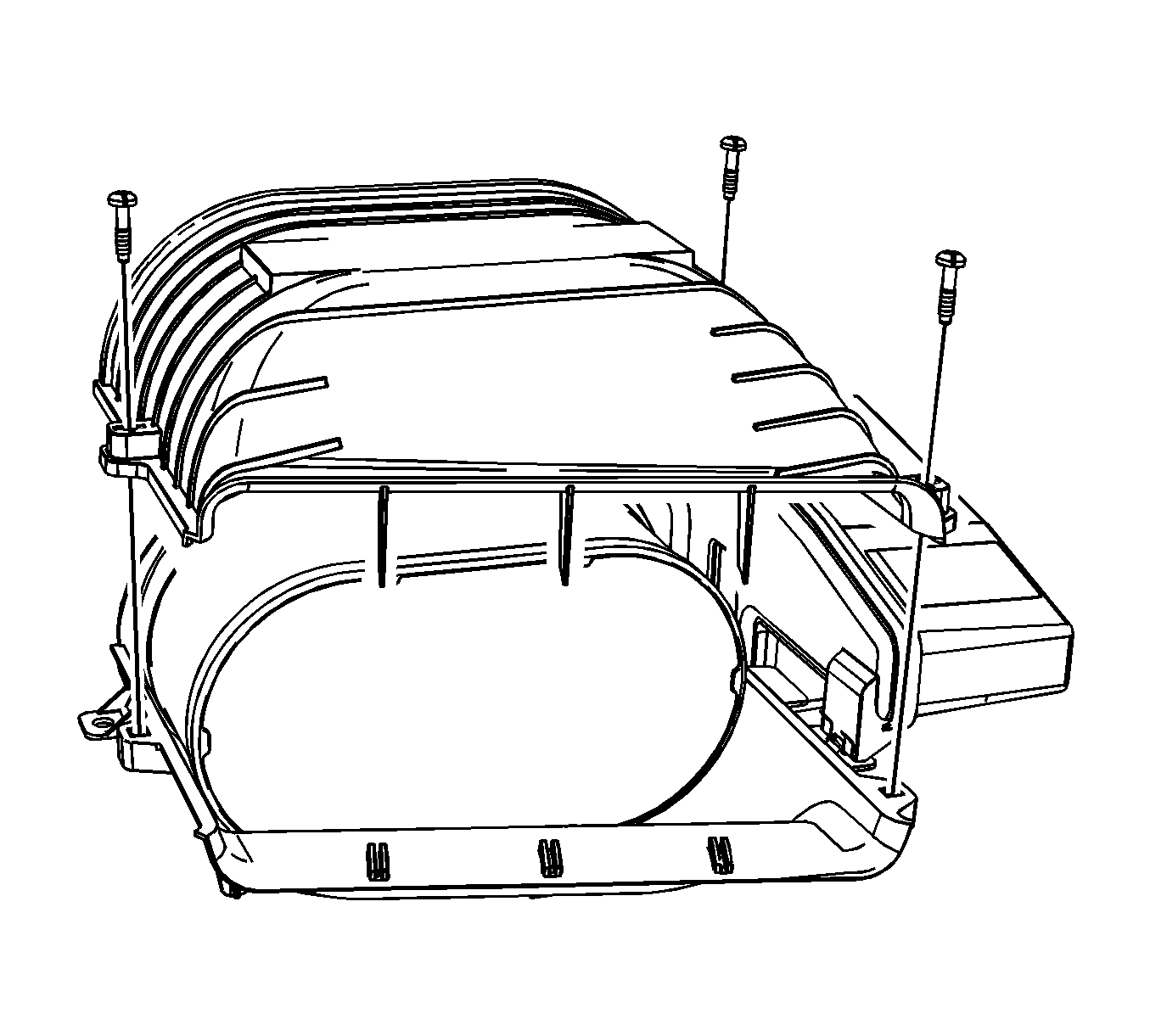

    3. Fig 2: Air Cleaner Cover Bolts
    GM1661286Courtesy of GENERAL MOTORS CORP.
    CAUTION:

    Refer to Fastener Caution .

  3. Install the air cleaner cover bolts and tighten to 4 N.m (35 lb in).
