Engine Coolant Temperature Sensor Replacement

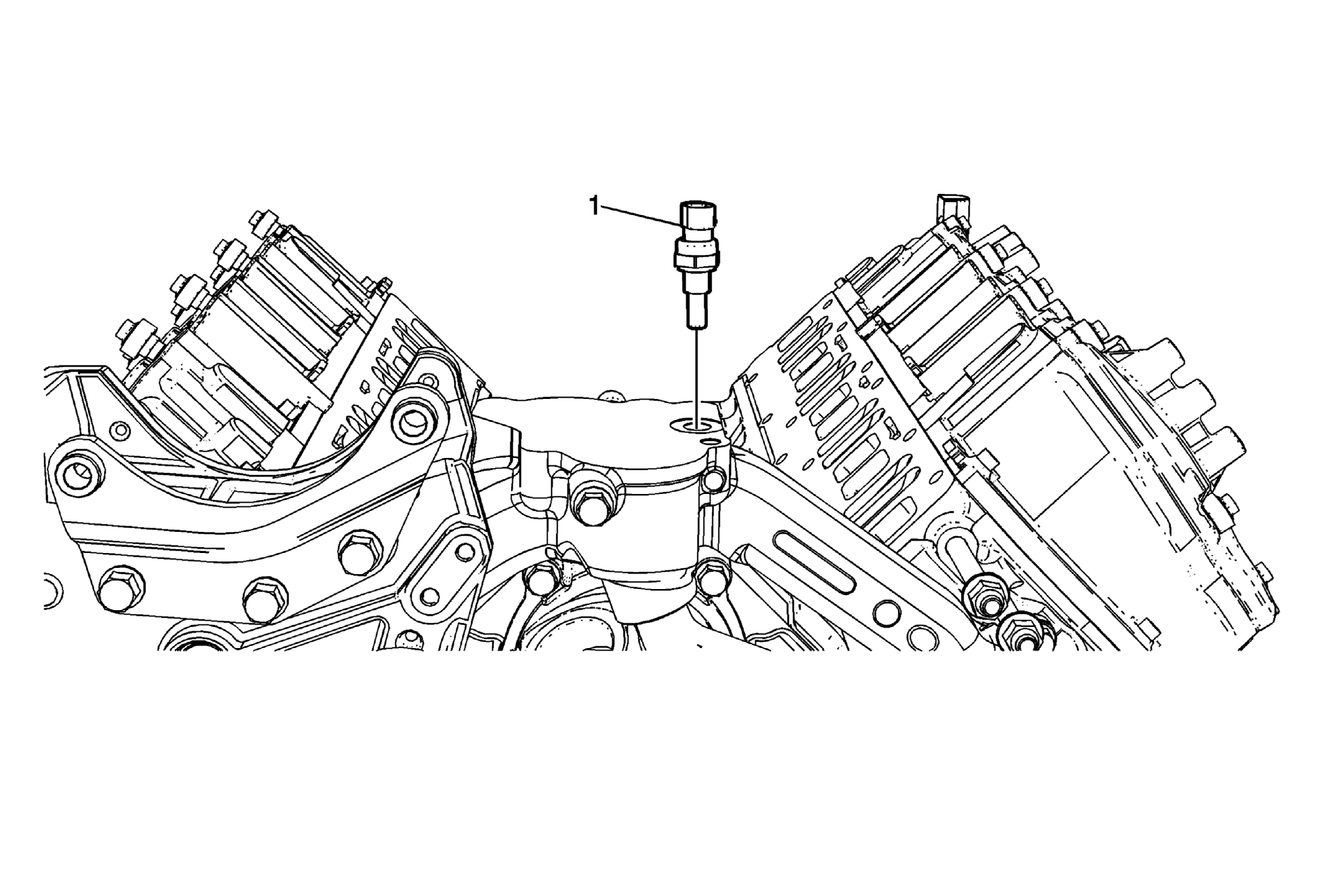

Fig 1: Engine Coolant Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement Partially drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill) , Cooling System Draining and Filling (Vac N Fill) , Cooling System Draining and Filling (Static Fill Diesel) .
1	Engine Coolant Temperature Sensor CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector. Tighten 20 N.m (15 lb ft)

Callout

Component Name

Preliminary Procedure

Engine Coolant Temperature Sensor

CAUTION:

Procedure
Disconnect the electrical connector.
Tighten
20 N.m (15 lb ft)
