Exhaust Temperature Sensor Replacement - Position 3

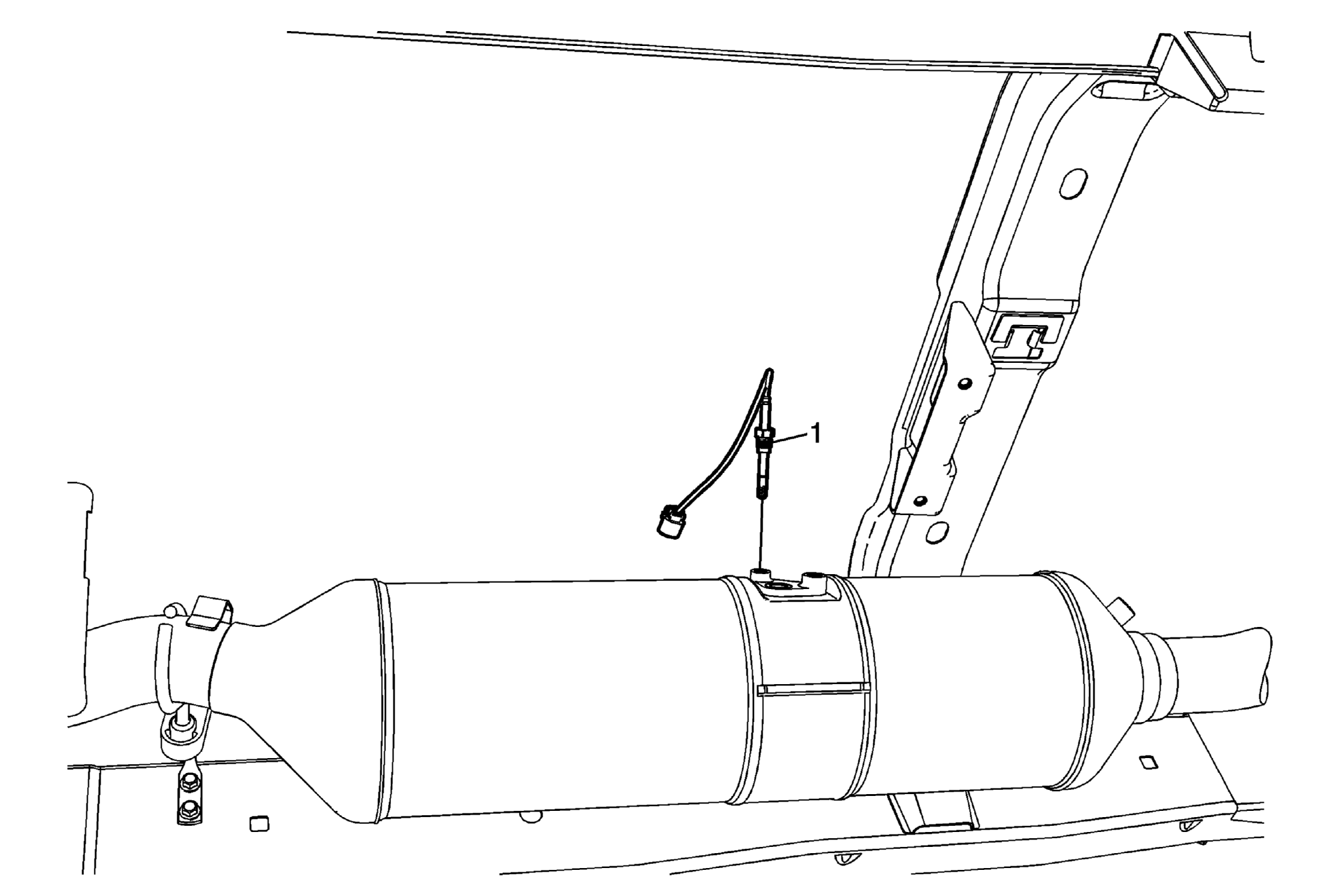

Fig 1: Exhaust Temperature Sensor - Position 3

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Exhaust Temperature Sensor CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector. If reinstalling the old sensor, coat the threads with anti-sieze compound. Refer to Adhesives, Fluids, Lubricants, and Sealers . Tighten 45 N.m (33 lb ft)

Callout

Component Name

Preliminary Procedure
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

Exhaust Temperature Sensor

CAUTION:

Procedure

Disconnect the electrical connector.
If reinstalling the old sensor, coat the threads with anti-sieze compound. Refer to Adhesives, Fluids, Lubricants, and Sealers .

Tighten
45 N.m (33 lb ft)
