Fuel Pressure Regulator Replacement

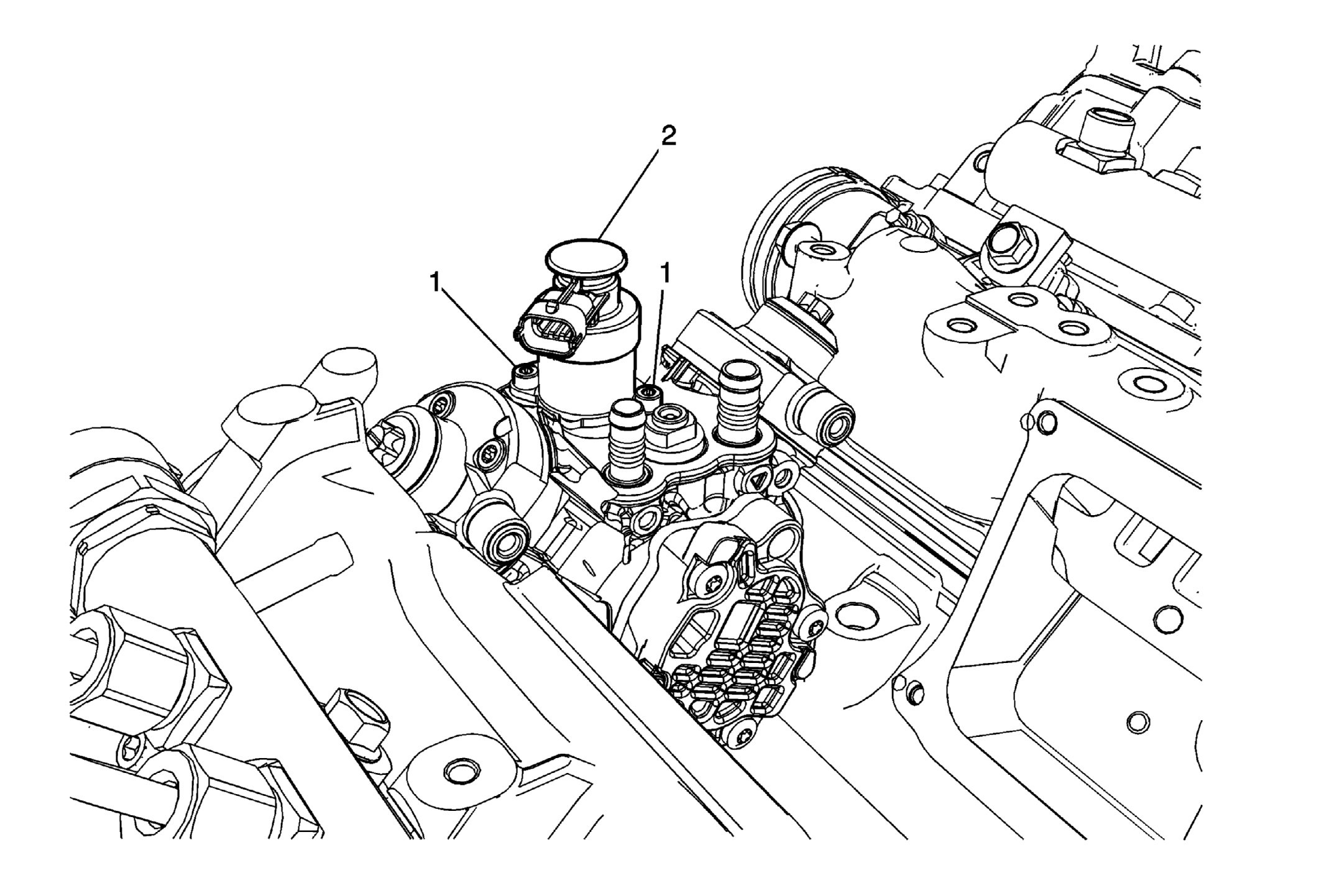

Fig 1: Fuel Pressure Regulator And Fasteners

Courtesy of GENERAL MOTORS CORP.

Fuel Pressure Regulator Replacement

Callout	Component Name
Preliminary Procedure  Remove the intake manifold tube. Refer to Intake Manifold Tube Replacement .
1	Fuel Pressure Sensor Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
2	Fuel Pressure Regulator Procedure  Disconnect the electrical connector.
