Installation Procedure

WARNING:

In order to reduce the risk of fire and personal injury, before connecting fuel pipe fittings, always apply a few drops of clean engine oil to the male pipe ends.

This will ensure proper reconnection and prevent a possible fuel leak.

During normal operation, the O-rings located in the female connector will swell and may prevent proper reconnection if not lubricated.

Fig 1: Oiling Male Pipe Ends

Courtesy of GENERAL MOTORS CORP.

Apply a few drops of clean engine oil to the male connection end.

Fig 2: Pushing Fittings Together

Courtesy of GENERAL MOTORS CORP.

Push both sides of the fittings together in order to snap the retaining tabs into place.

Fig 3: Ensuring Connection (Metal Collar) Is Secure

Courtesy of GENERAL MOTORS CORP.

Once installed, pull on both sides of the connections in order to make sure the connection is secure.

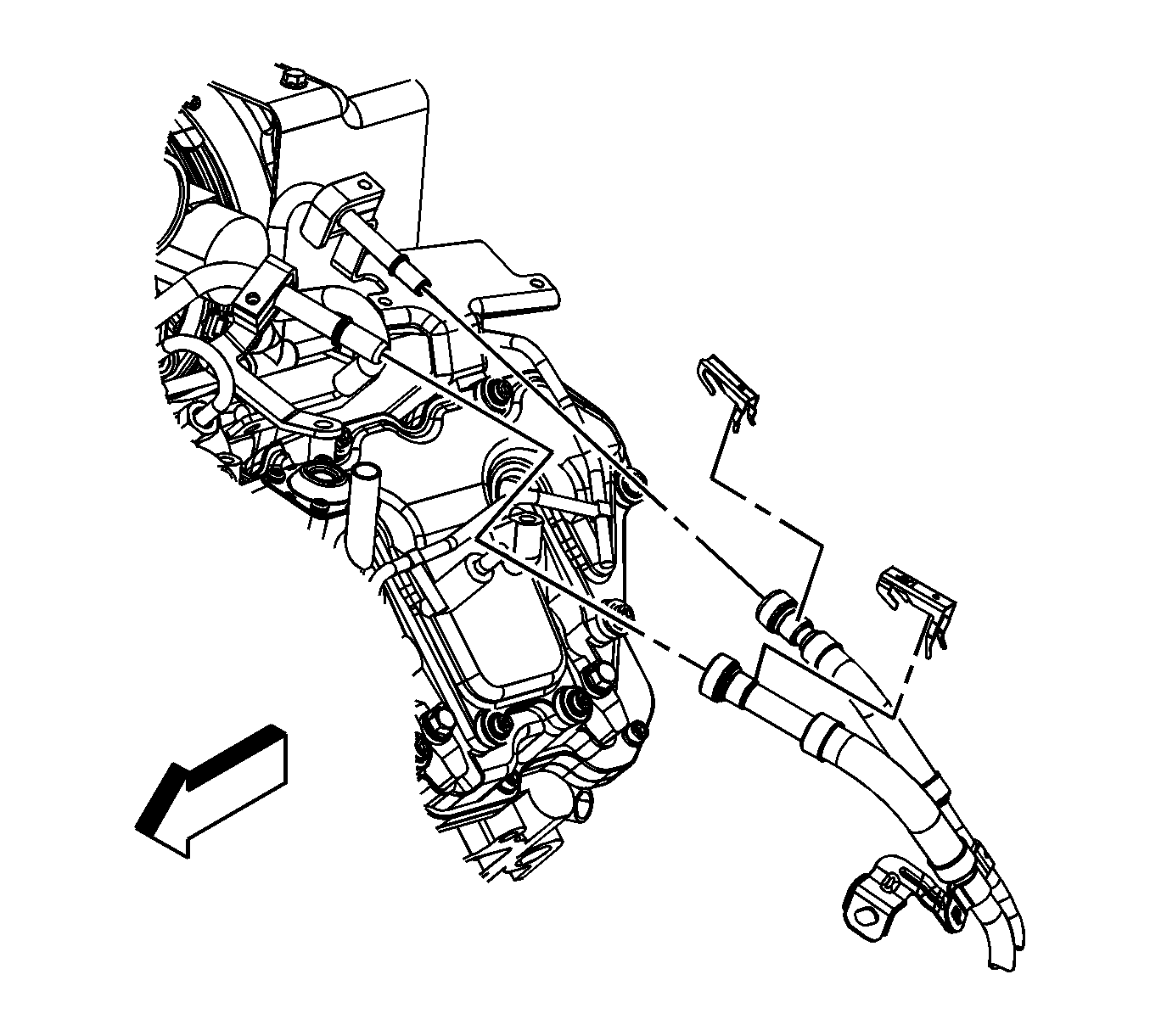

Fig 4: Fuel Lines At Engine

Courtesy of GENERAL MOTORS CORP.

Install the retainers to the fuel feed/return pipes.
Install the fuel fill cap.
Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
