Object Detection System Wiring Schematics

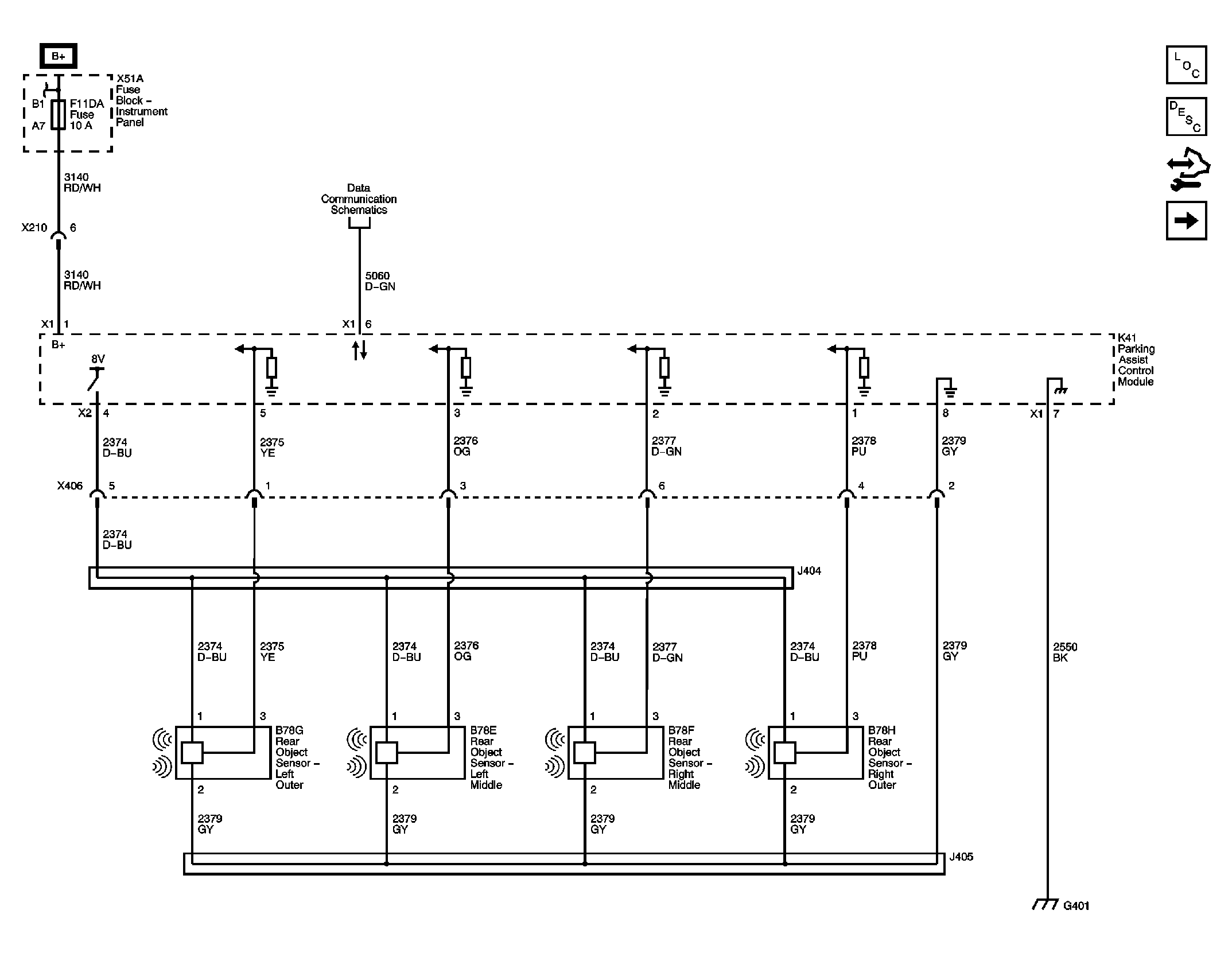

Fig 1: Rear Parking Assist Wiring Schematic (UD7)

Courtesy of GENERAL MOTORS CORP.

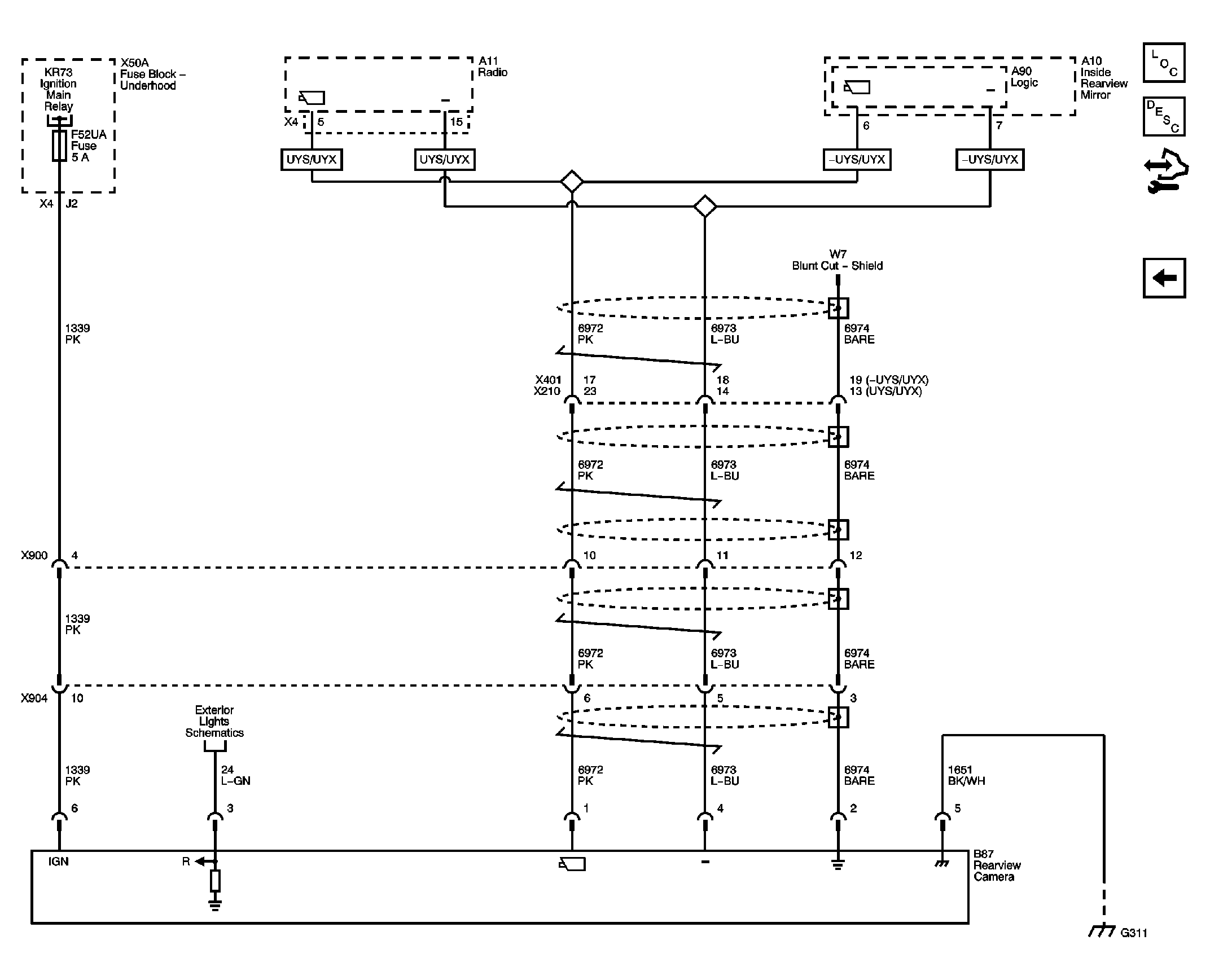

Fig 2: Rearview Camera Wiring Schematic (UVC)

Courtesy of GENERAL MOTORS CORP.
