Steering Wheel Secondary/Configurable Control Wiring Schematics

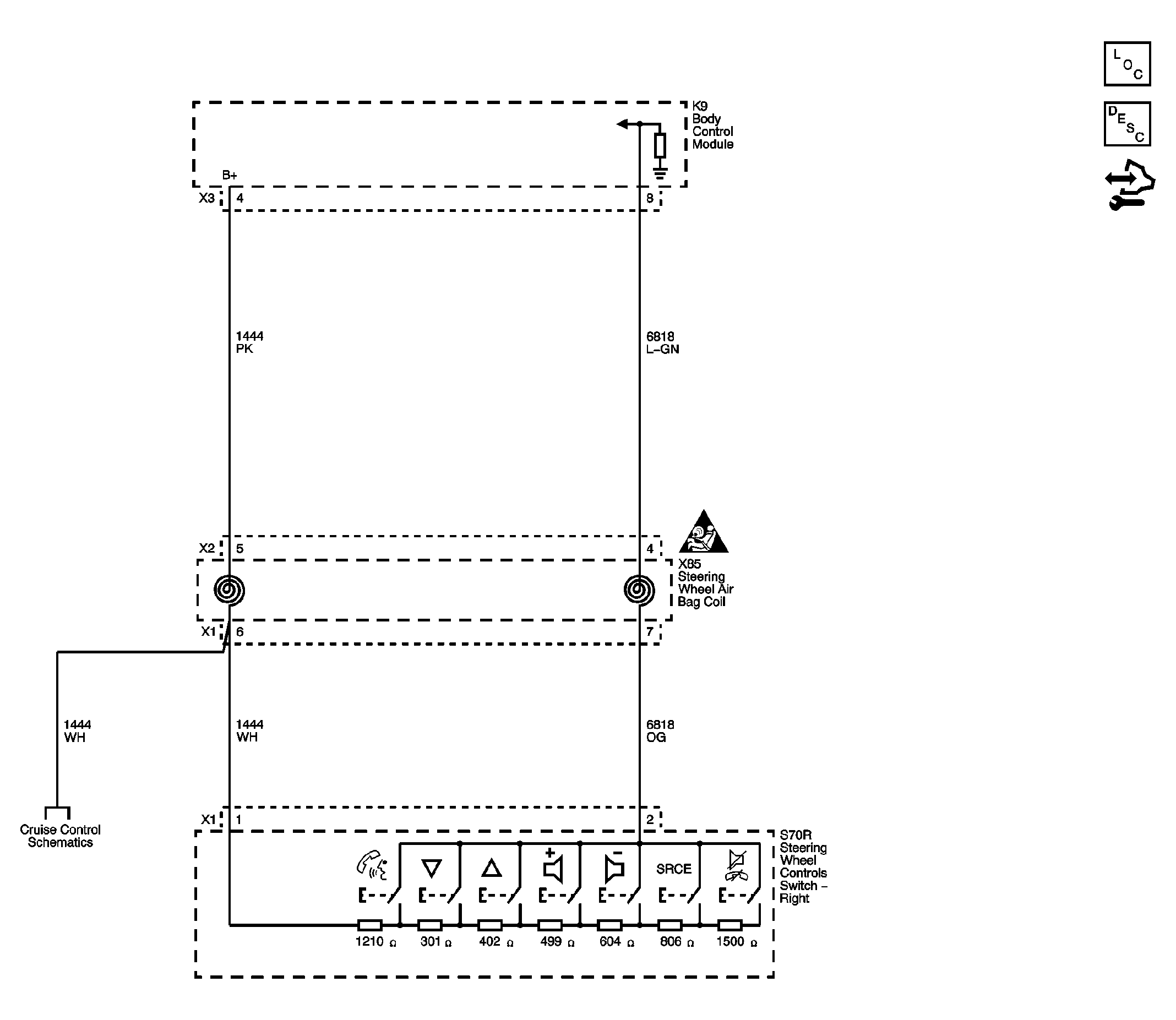

Fig 1: UK3 Wiring Schematic
GM2409455Courtesy of GENERAL MOTORS CORP.
