Air Cleaner Outlet Resonator Replacement

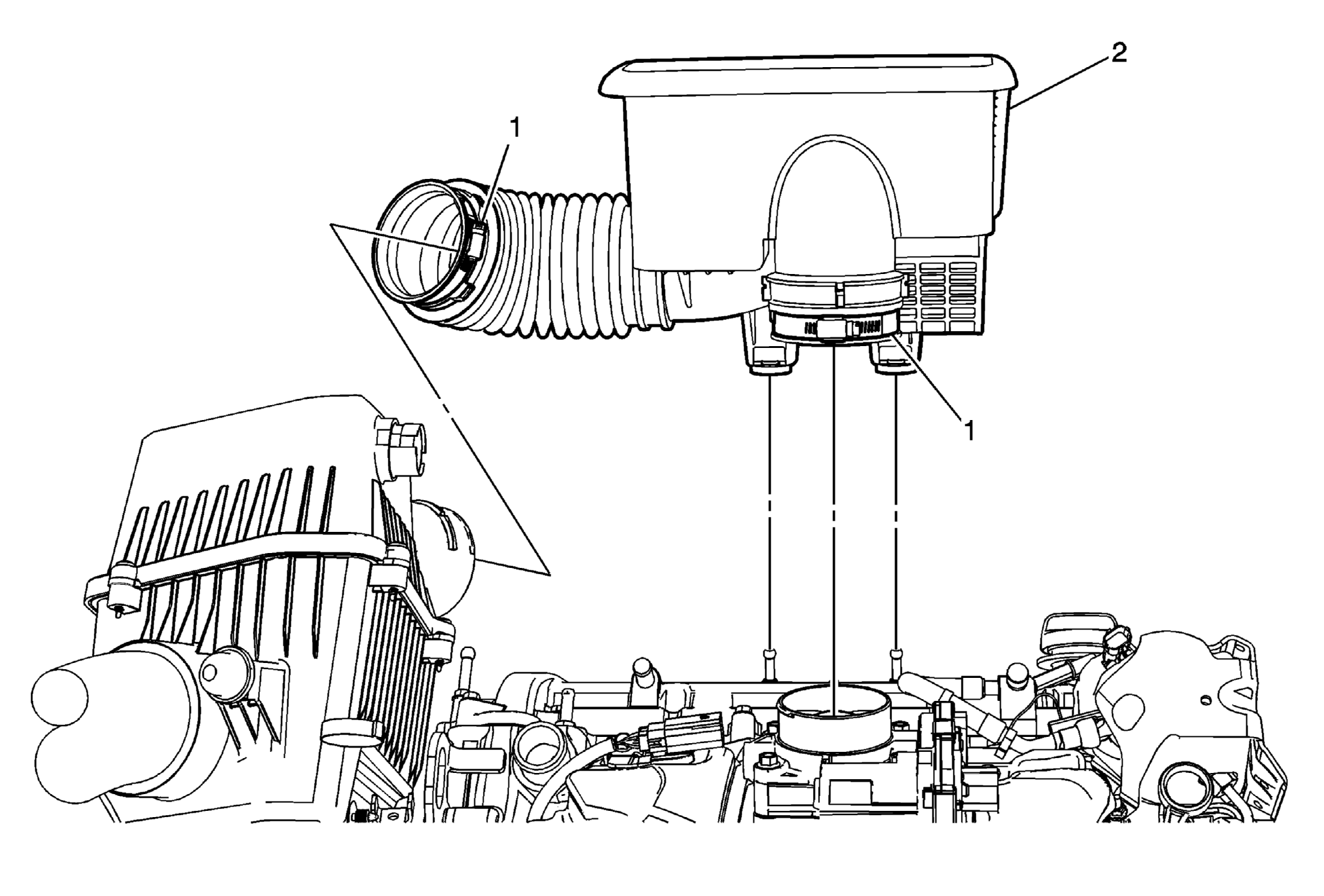

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Disconnect the PCV valve from the resonator. Refer to Positive Crankcase Ventilation Hose/Pipe/Tube Replacement . |
|
| 1 | Resonator Clamps (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 5 N.m (44 lb in) |
| 2 | Air Cleaner Outlet Resonator |
