Fuel Pump Cover Replacement

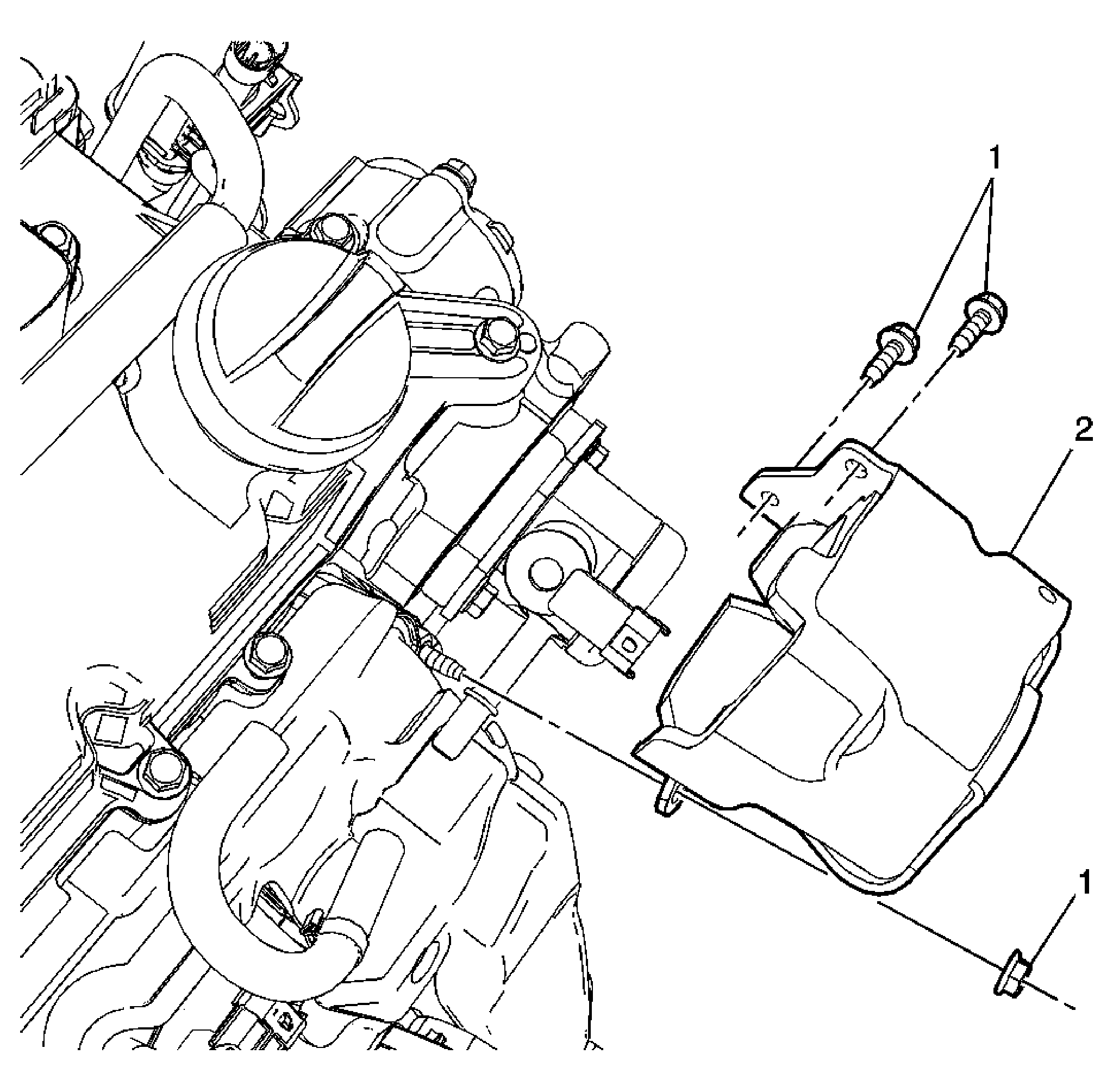

Fig 1: Fuel Pump Cover

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Pump Cover Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m(89 lb in)
2	Fuel Pump Cover
