Lumbar Switch Replacement

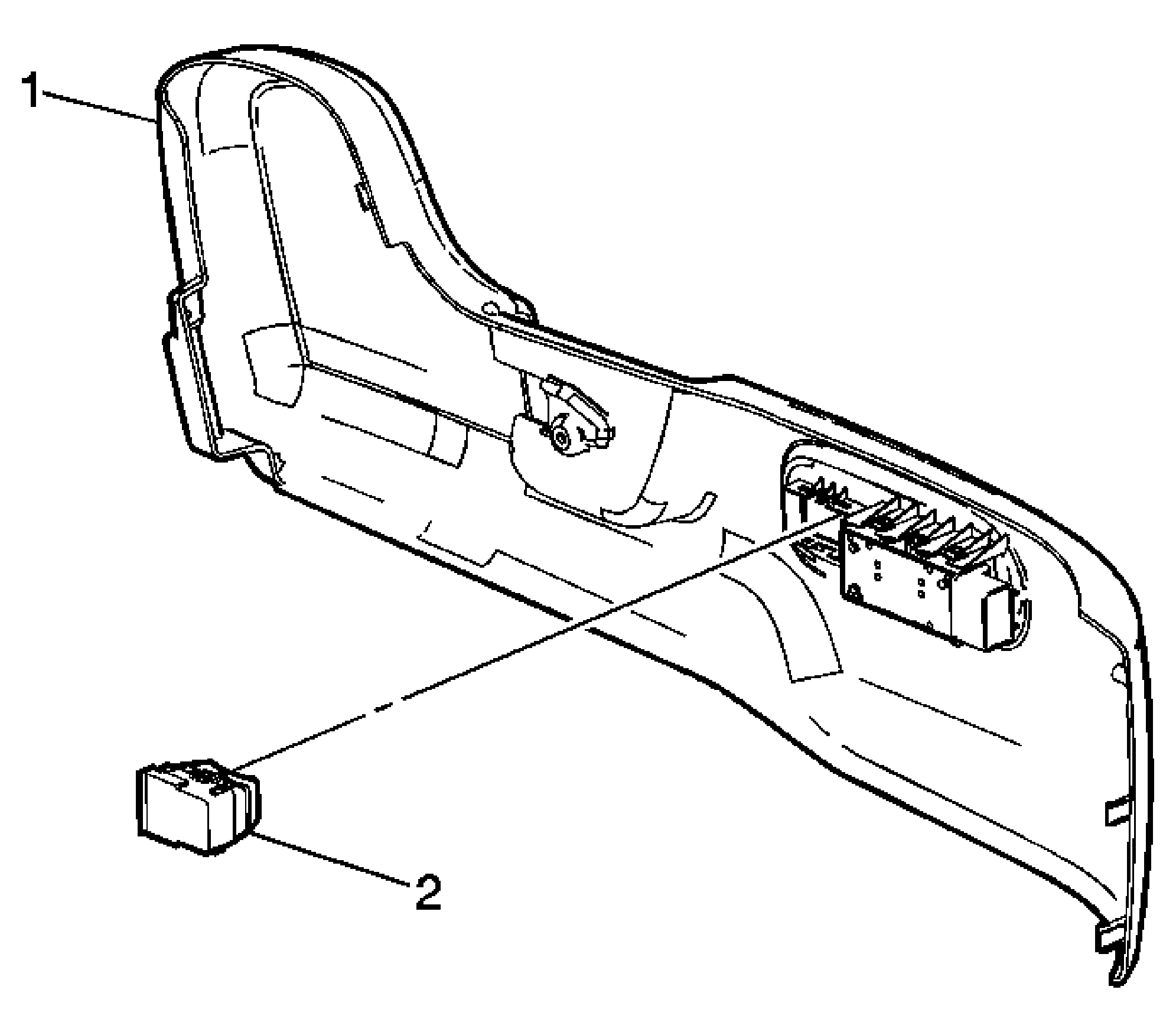

Fig 1: Lumbar Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front seat. Refer to Front Seat Replacement - Bucket . Remove the recliner handle. Refer to Driver or Passenger Seat Recliner Handle Replacement .
1	Cover, Seat Riser Finish Outboard Refer to Front Seat Cushion Outer Trim Panel Replacement (Power) , Front Seat Cushion Outer Trim Panel Replacement (Manual) .
2	Switch, Driver Seat Lumbar Control Disconnect the electrical connector. Unclip from seat riser finish cover and pull the switch away to remove.

Callout

Component Name

Preliminary Procedure

Switch, Driver Seat Lumbar Control
