Installation Procedure

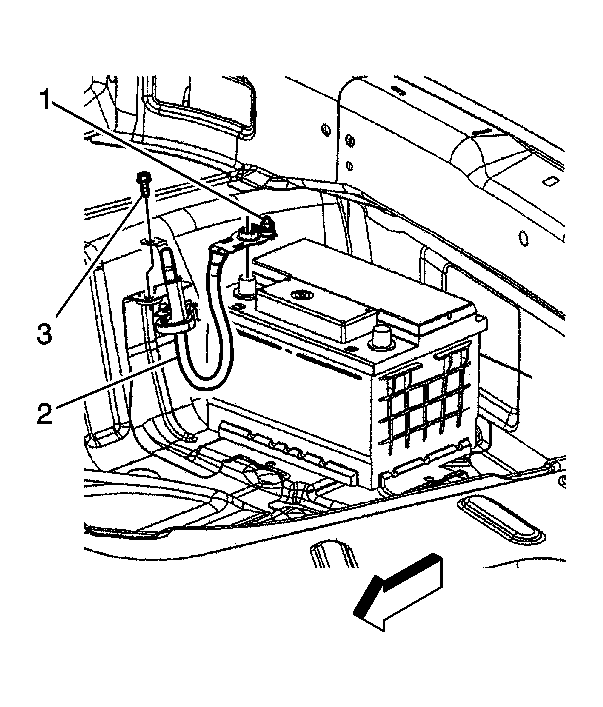

    Fig 1: Battery Negative Cable
    GM1631517Courtesy of GENERAL MOTORS COMPANY
  1. Install the negative battery cable (2).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the negative battery cable bolt (3) at the support.

    Tighten

    Tighten the bolt to 20 N.m (15 lb ft).

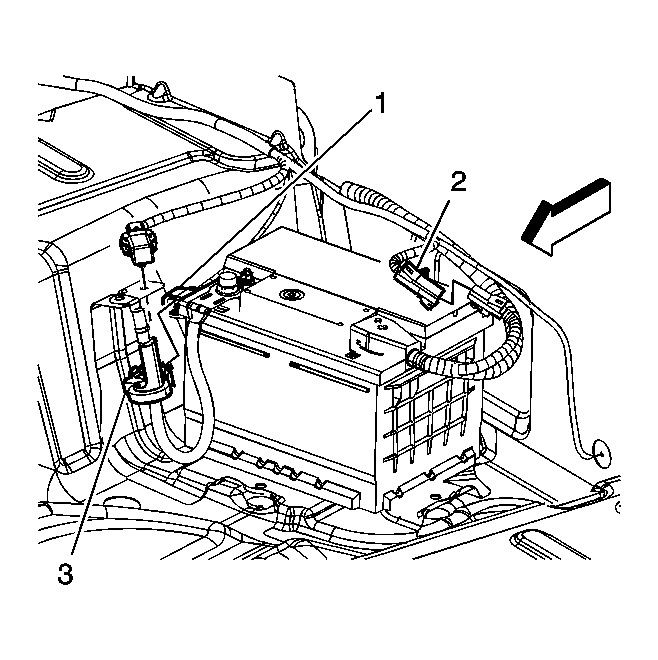

    3. Fig 2: Body Harness Electrical Connector
    GM1631519Courtesy of GENERAL MOTORS COMPANY
  3. Connect the body harness electrical connector (1) to the battery current sensor (3).
  4. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
