Removal Procedure

    Fig 1: Negative Battery Cable
    GM1631518Courtesy of GENERAL MOTORS COMPANY
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Open the junction block terminal cover.
  3. Remove the junction block terminal nut (1).
  4. Remove the positive/negative battery cable terminal (2) from the junction block terminal stud.
  5. Remove the positive/negative ground nut (3) from the tie bar stud.
  6. Remove the positive/negative ground terminal (4) from the tie bar stud.
  7. Remove the positive/negative battery cable clip (6) from the engine control module (ECM)/transaxle control module (TCM) bracket.
  8. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
    9. Fig 2: Engine Harness
    GM1625468Courtesy of GENERAL MOTORS COMPANY
  9. If equipped with a automatic transaxle, perform the following steps, remove the positive/negative battery cable ground nut (2).
  10. Remove the positive/negative cable ground terminal (1) from the transaxle stud.
  11. Remove the starter solenoid nut (4).
  12. Remove the positive/negative battery cable (3) from the starter.

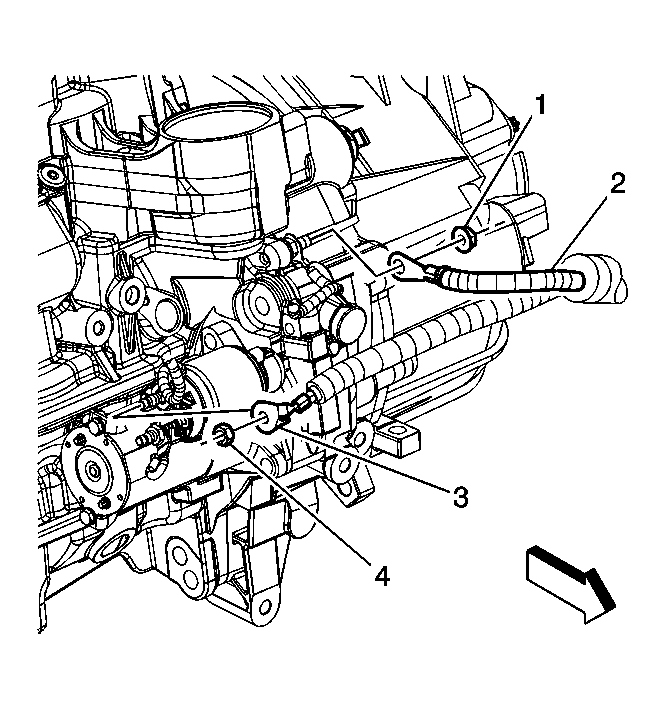

    13. Fig 3: Positive/Negative Battery Cable
    GM1625471Courtesy of GENERAL MOTORS COMPANY
  13. If equipped with a manual transaxle, perform the following steps, remove the positive/negative battery cable ground nut (1).
  14. Remove the positive/negative cable ground terminal (2) from the transaxle stud.
  15. Remove the starter solenoid nut (4).
  16. Remove the positive/negative battery cable (3) from the starter.
