Starting System and Charging System Wiring Schematics: Starting

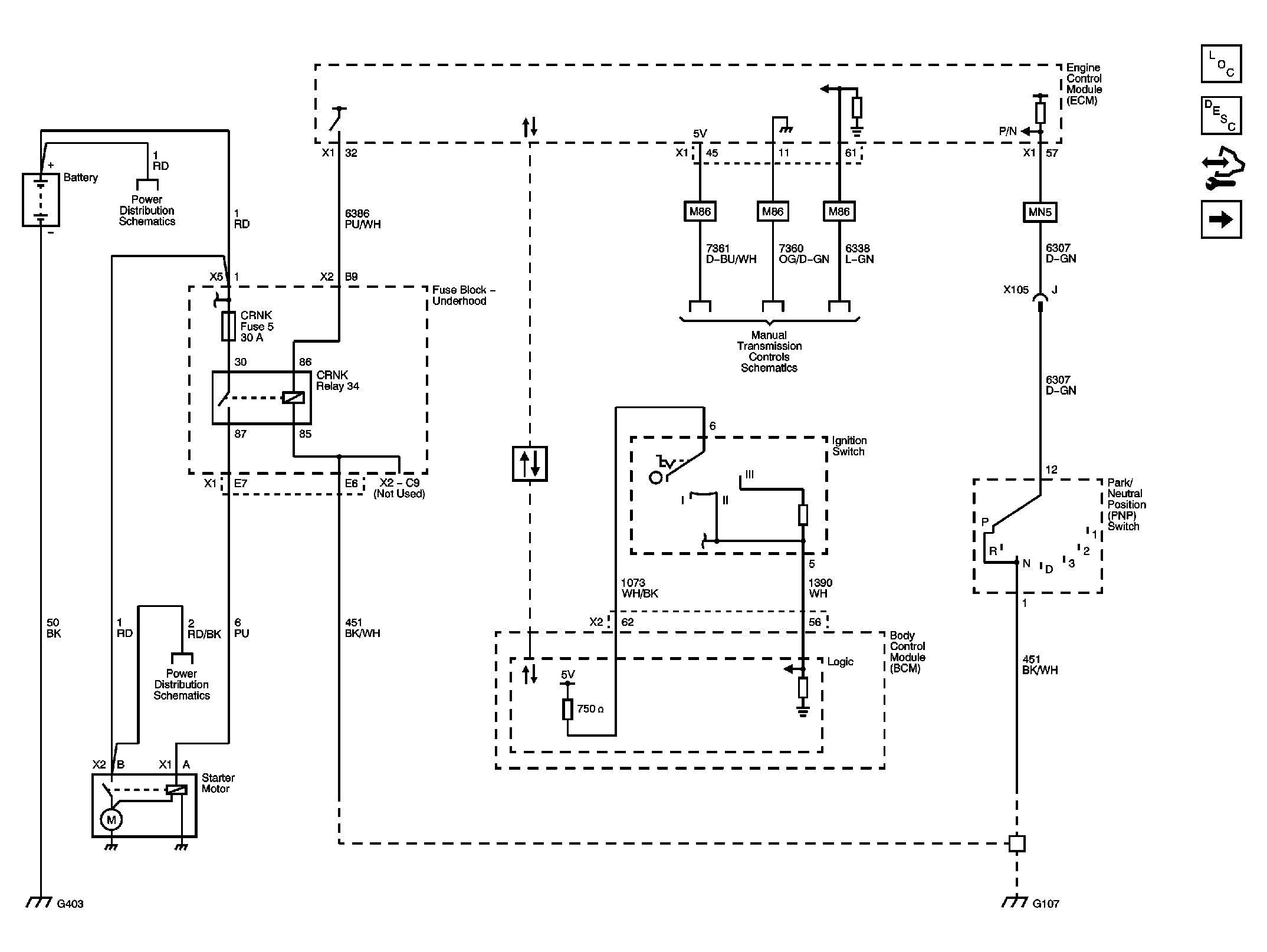

Fig 1: Starting System Wiring Schematic
GM2376966Courtesy of GENERAL MOTORS COMPANY
