Engine Compartment Components- Front

Engine Compartment Components- Front

Component Name Callout
Hood Ajar Switch (AP3) 1
Inflatable Restraint Front End Sensor 2
Engine Cooling Fan 3
Radiator 4

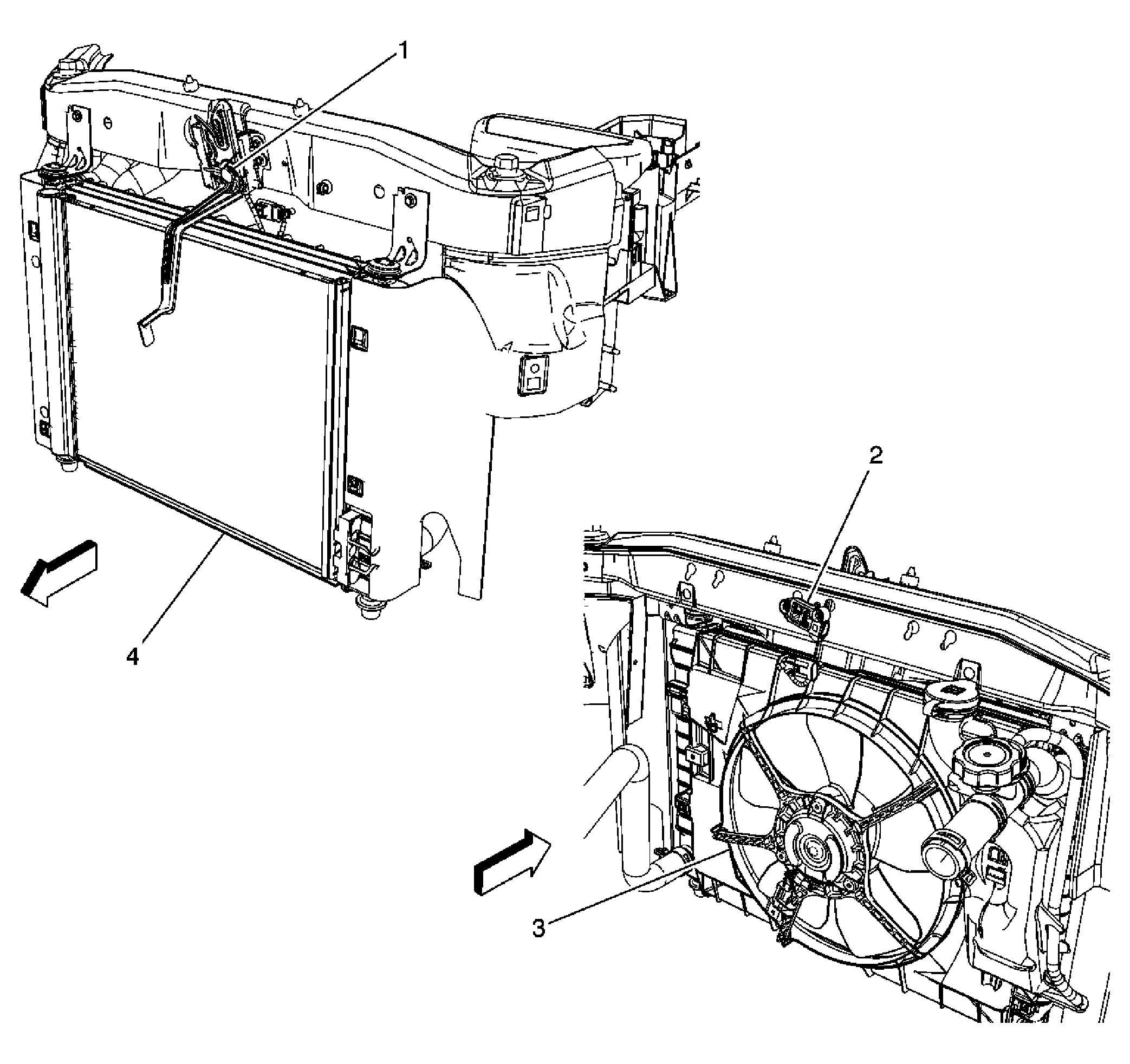

Fig 1: Engine Compartment Components
GM2411103Courtesy of GENERAL MOTORS COMPANY
