Engine Compartment Components- Left

Engine Compartment Components- Left

Component Name Callout
G109 1
Fuse Block- Underhood 2
Relay Block- Underhood 3
Transmission Control Module (TCM) (MN5) 4
Engine Control Module (ECM) 5

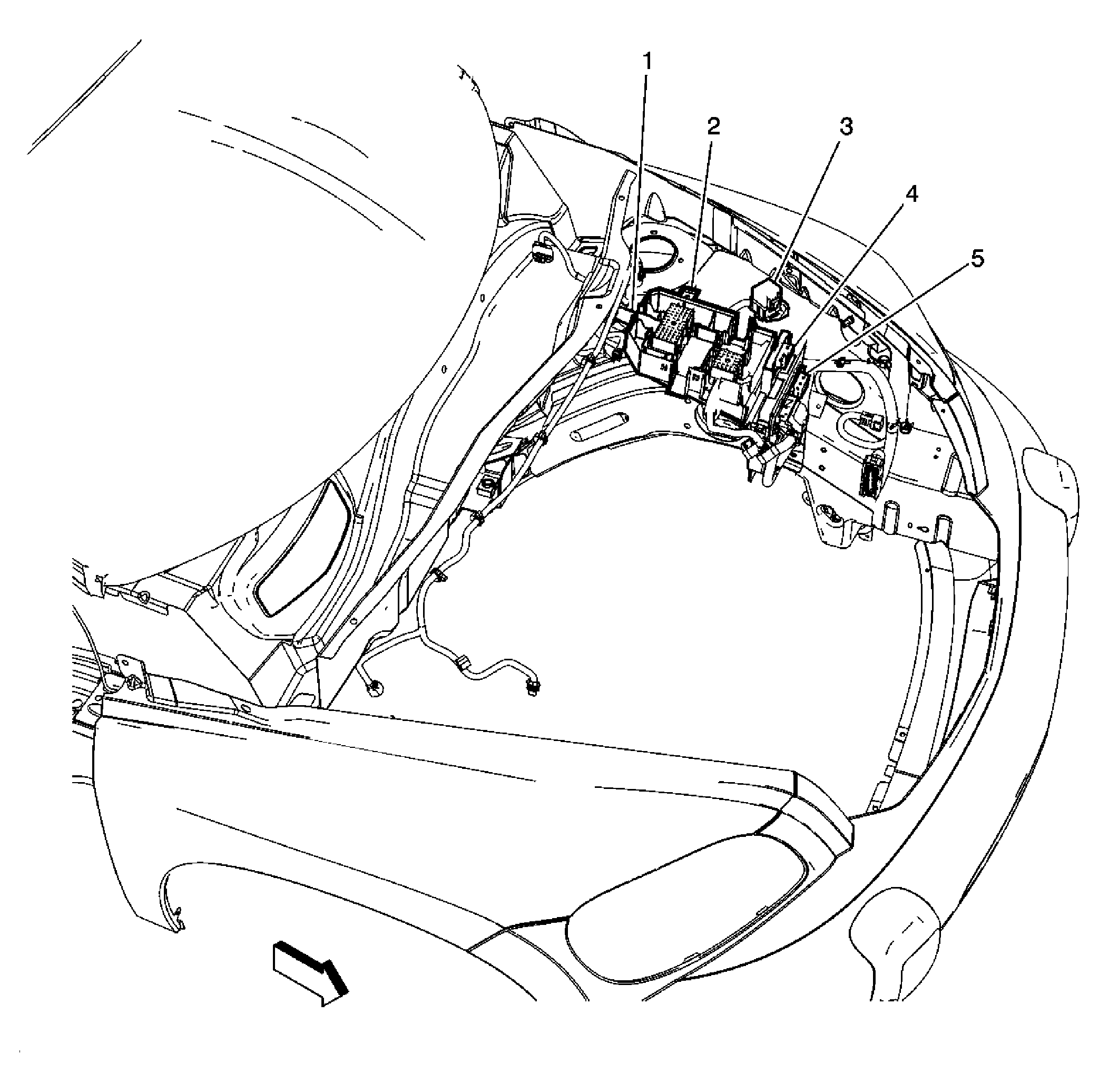

Fig 1: Engine Compartment - Left Side
GM2193363Courtesy of GENERAL MOTORS COMPANY
