I/P- Left Side

I/P- Left Side

Component Name Callout
I/P Trim Panel 1
Instrument Panel Cluster (IPC) 2
G201 3
G203 4

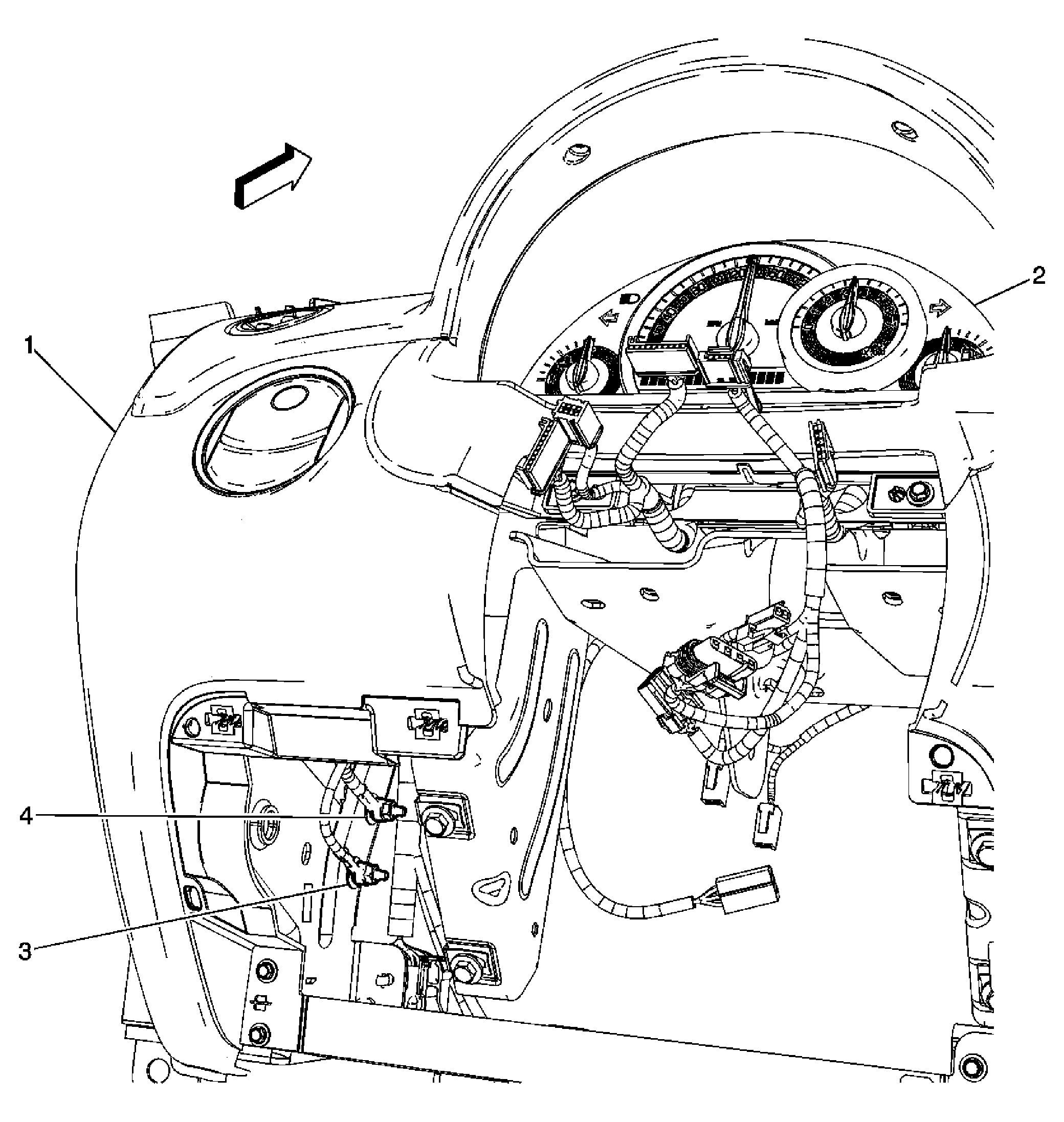

Fig 1: G201 and G203
GM1651920Courtesy of GENERAL MOTORS COMPANY
