HHR LS, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communications System
›
Wiring Schematics
›
Body Control System Wiring Schematics
›
Power, Ground, Serial Data, and Subsystem References (1 of 4)
Power, Ground, Serial Data, and Subsystem References (1 of 4)

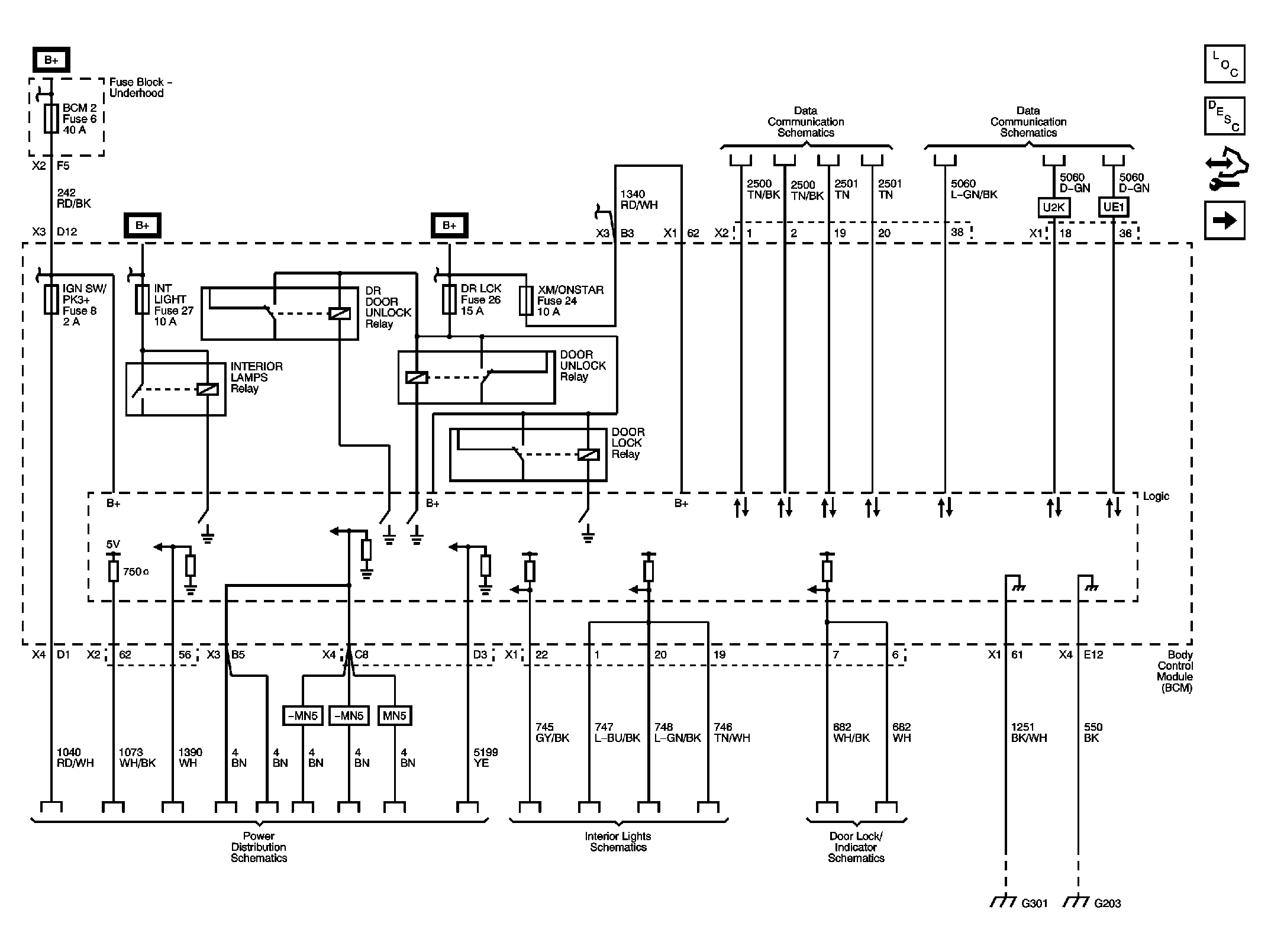

Fig 1: Power, Ground, Serial Data, and Subsystem References Wiring Schematic (1 of 4)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
