Subsystem References (3 of 4)

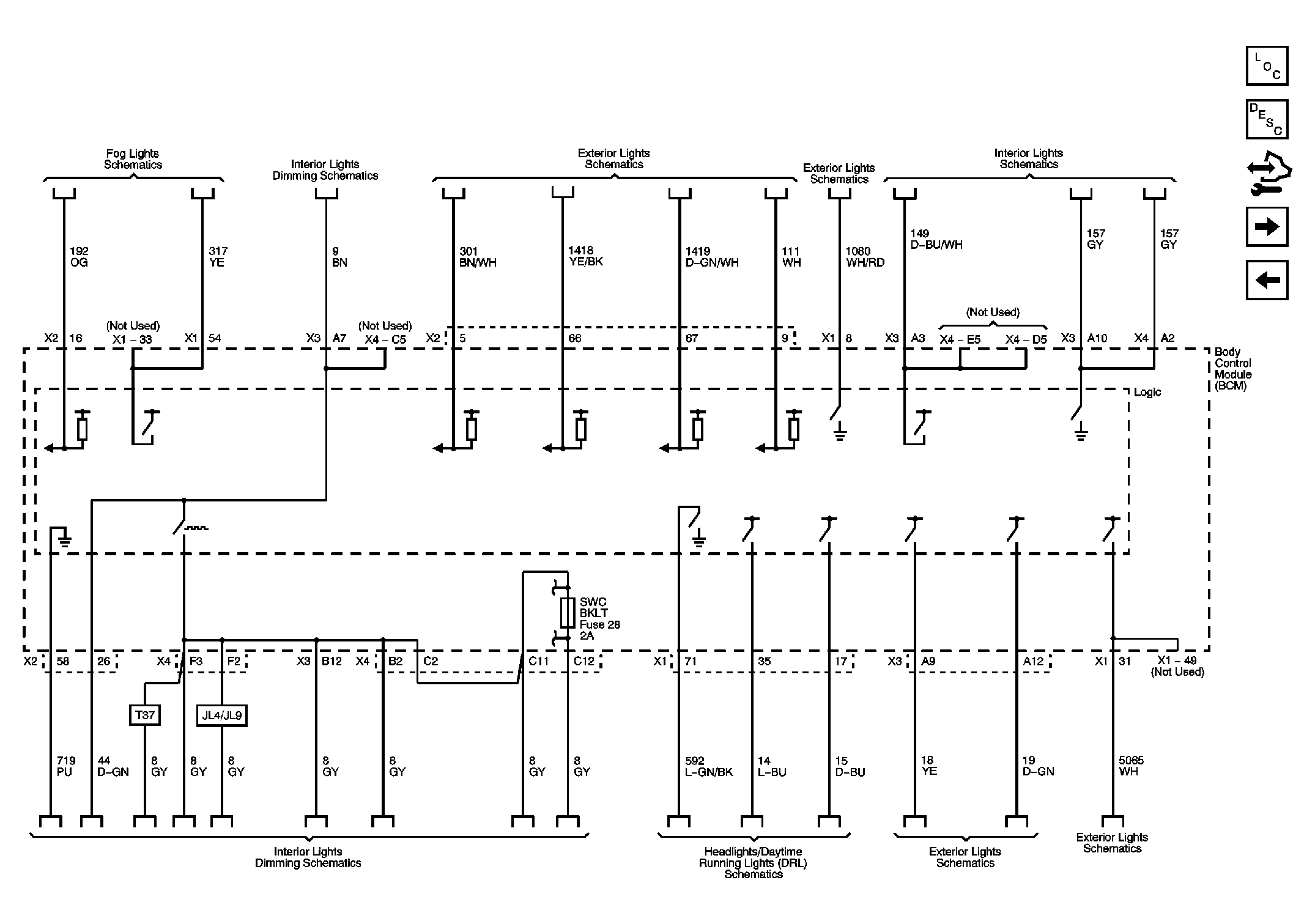

Fig 1: Subsystem References Wiring Schematic (3 of 4)
GM2377006Courtesy of GENERAL MOTORS COMPANY
