Data Communication System Wiring Schematics
›
High Speed GMLAN
High Speed GMLAN

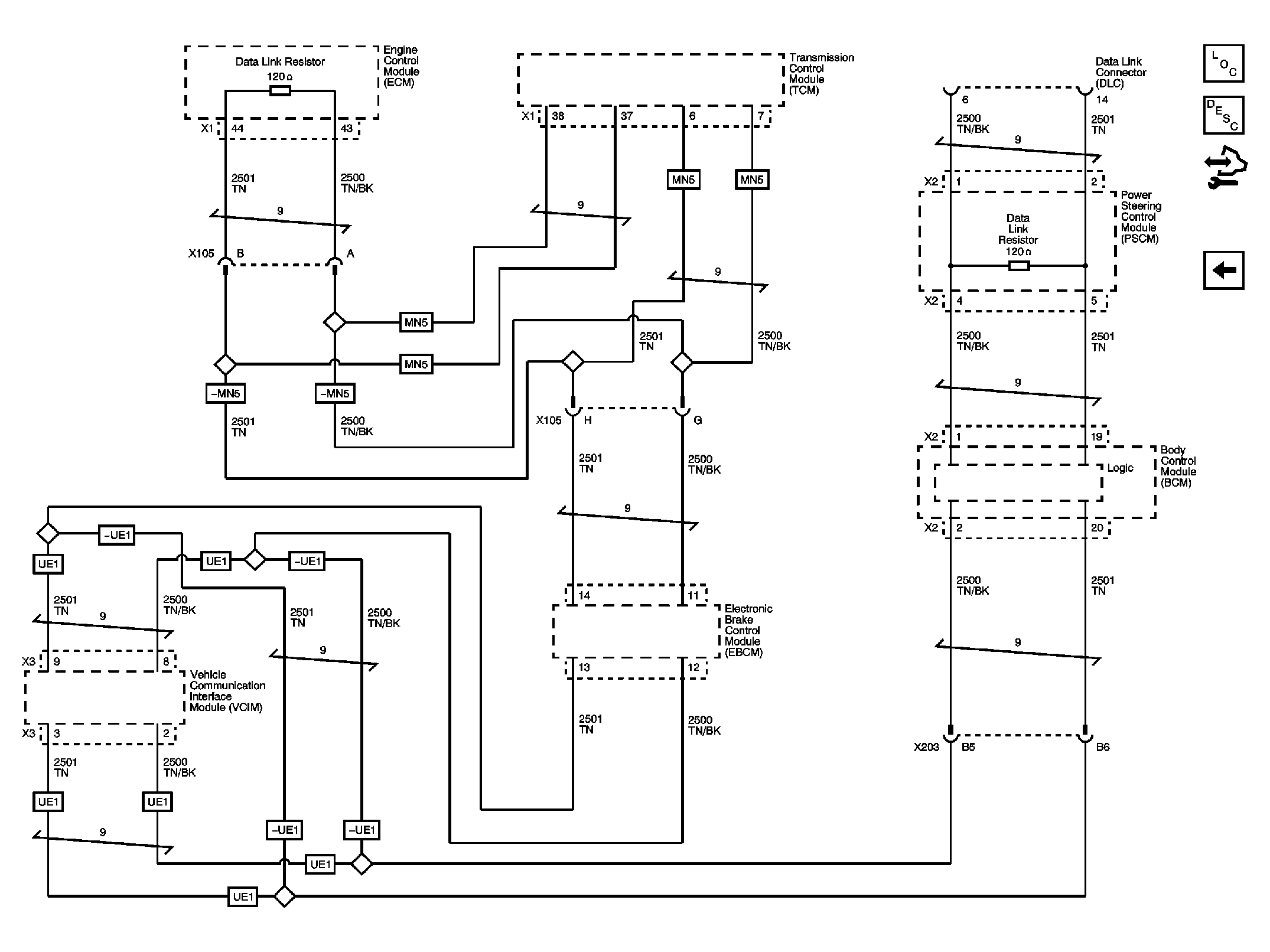

Fig 1: High Speed GMLAN Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
