Chevrolet
›
2011
›
HHR LS, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communications System
›
Wiring Schematics
›
Data Communication System Wiring Schematics
›
Power, Ground, and Low Speed GMLAN
Power, Ground, and Low Speed GMLAN

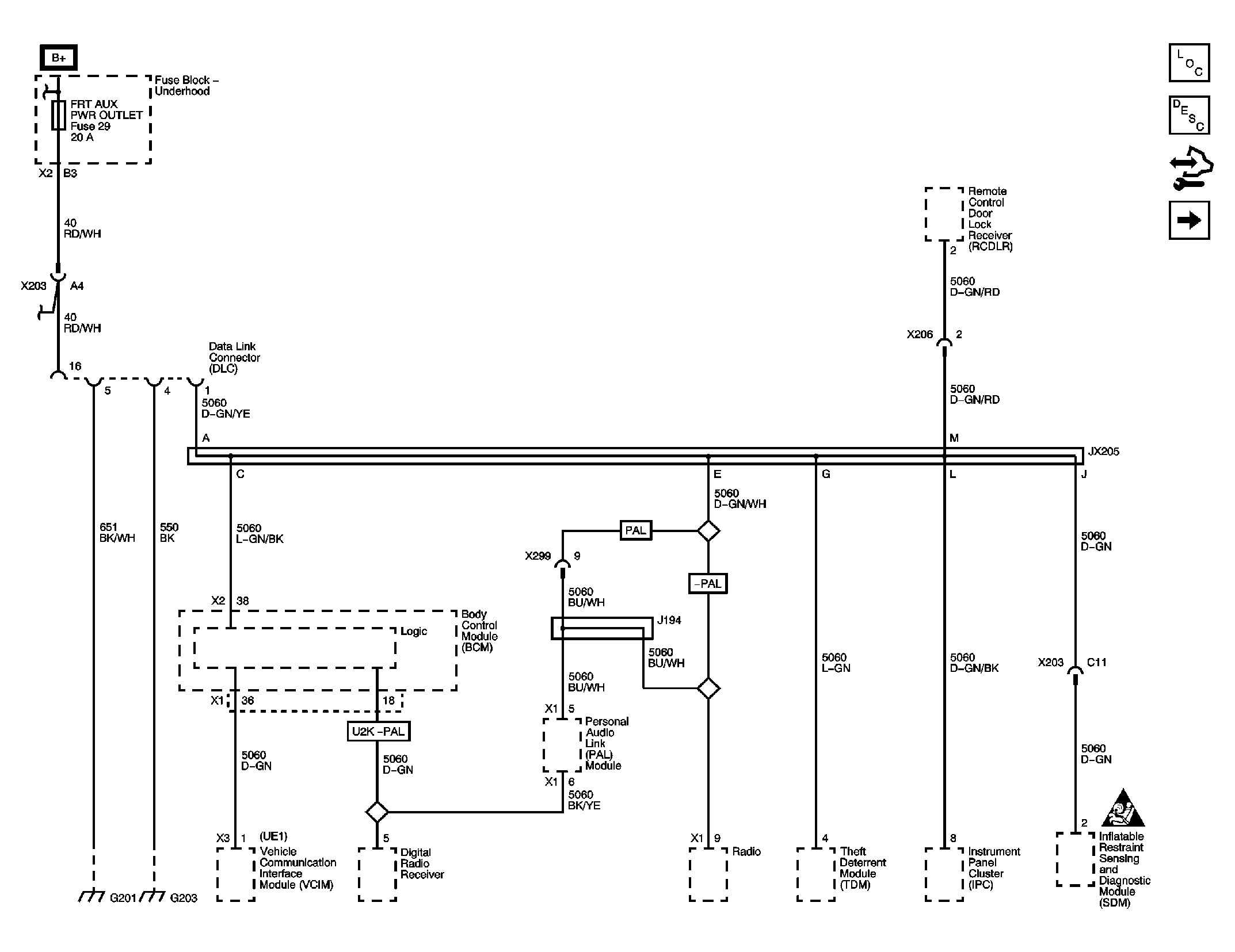

Fig 1: Power, Ground, and Low Speed GMLAN Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
