Installation Procedure

WARNING: This page is about a different car, the 2008 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

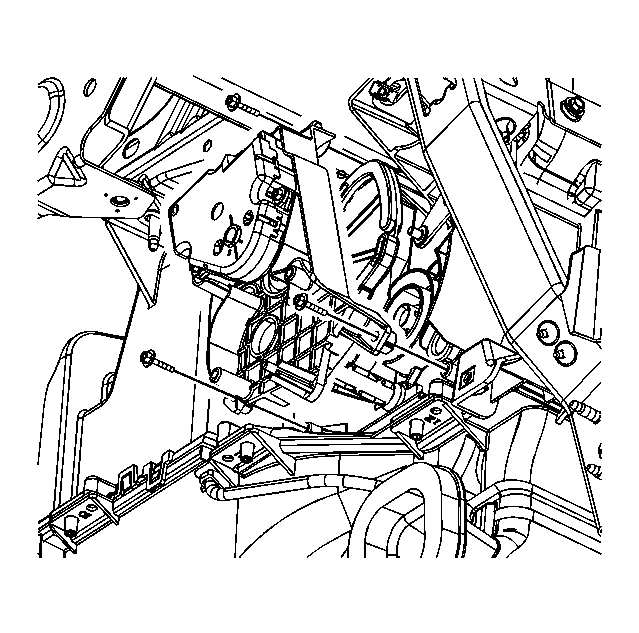

    Fig 1: Mode Actuator Assembly
    GM1552341Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The key should be in the OFF position when connecting the electrical connectors to ensure proper calibration.
  1. Install the mode actuator assembly.
    2. NOTE: Refer to Fastener Notice .
  2. Install the mode actuator assembly screws.

    Tighten:  Tighten the screws to 2.2 N.m (19 lb in).

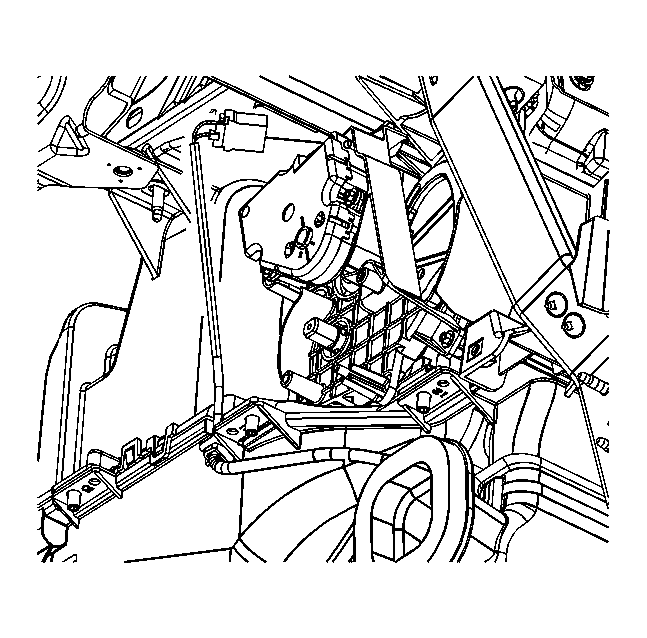

    3. Fig 2: Mode Actuator Electrical Connector
    GM1552340Courtesy of GENERAL MOTORS CORP.
  3. Install the mode actuator electrical connector.
  4. Install the air temperature actuator. Refer to Air Temperature Actuator Replacement .
    5. IMPORTANT: Do not adjust any controls on the HVAC control assembly while the HVAC control assembly and actuators are calibrating. If interrupted improper HVAC performance will result.
  5. Start the engine and let run for 1 minute.
