Installation Procedure

WARNING: This page is about a different car, the 2008 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

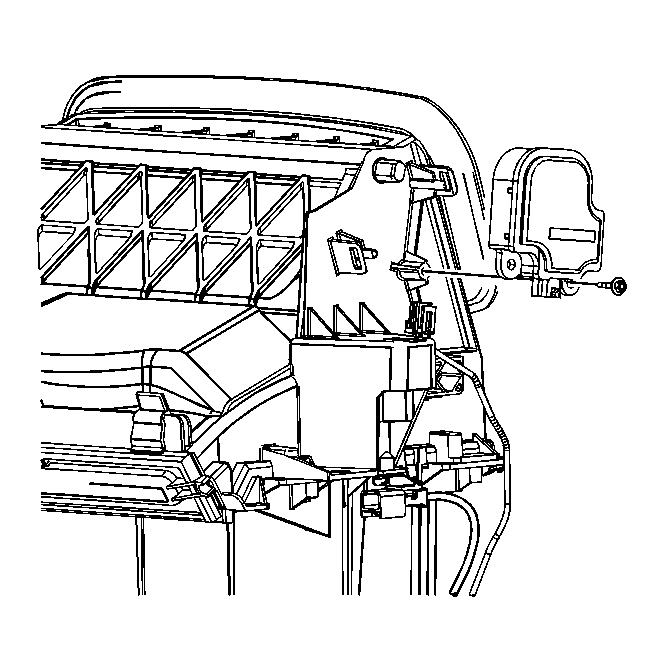

    Fig 1: Recirculation Actuator
    GM1552372Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The key should be in the OFF position when connecting the electrical connectors to ensure proper calibration.
  1. Install the recirculation actuator.
    2. NOTE: Refer to Fastener Notice .
  2. Install the recirculation actuator screw.

    Tighten:  Tighten the screw to 2.2 N.m (19 lb in).

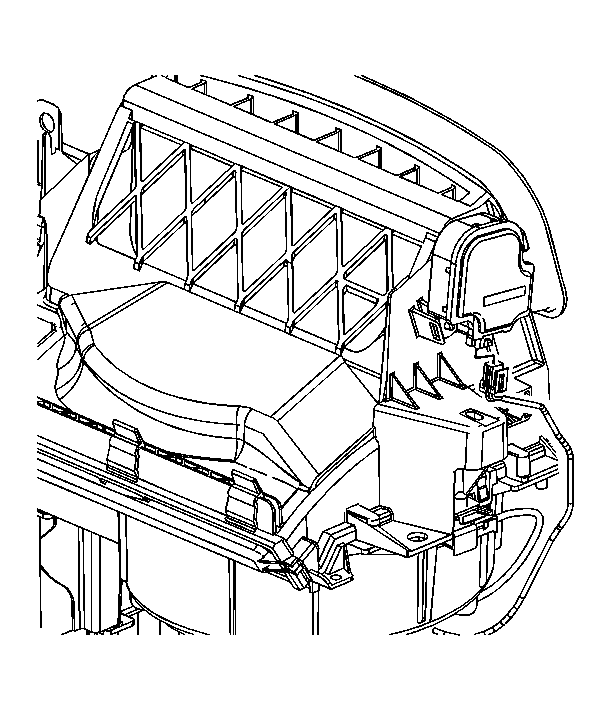

    3. Fig 2: Recirculation Actuator Electrical Connector
    GM1552373Courtesy of GENERAL MOTORS CORP.
  3. Install the recirculation electrical connector.
  4. Install the I/P tie bar. Refer to Instrument Panel Tie Bar Replacement .
  5. Install the I/P retainer. Refer to Instrument Panel Retainer Replacement .
  6. Install the fuse labeled HVAC CTRL (BATT).
    7. IMPORTANT: Do not adjust any controls on the HVAC control assembly while the HVAC control assembly and actuators are calibrating. If interrupted improper HVAC performance will result.
  7. Start the engine and let run for 1 minute.
