Brake Fluid Level Indicator Switch Replacement
WARNING: This page is about a different car, the 2008 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
Preliminary Procedure:
Disconnect the brake fluid level indicator switch electrical connector. |
| 1 |

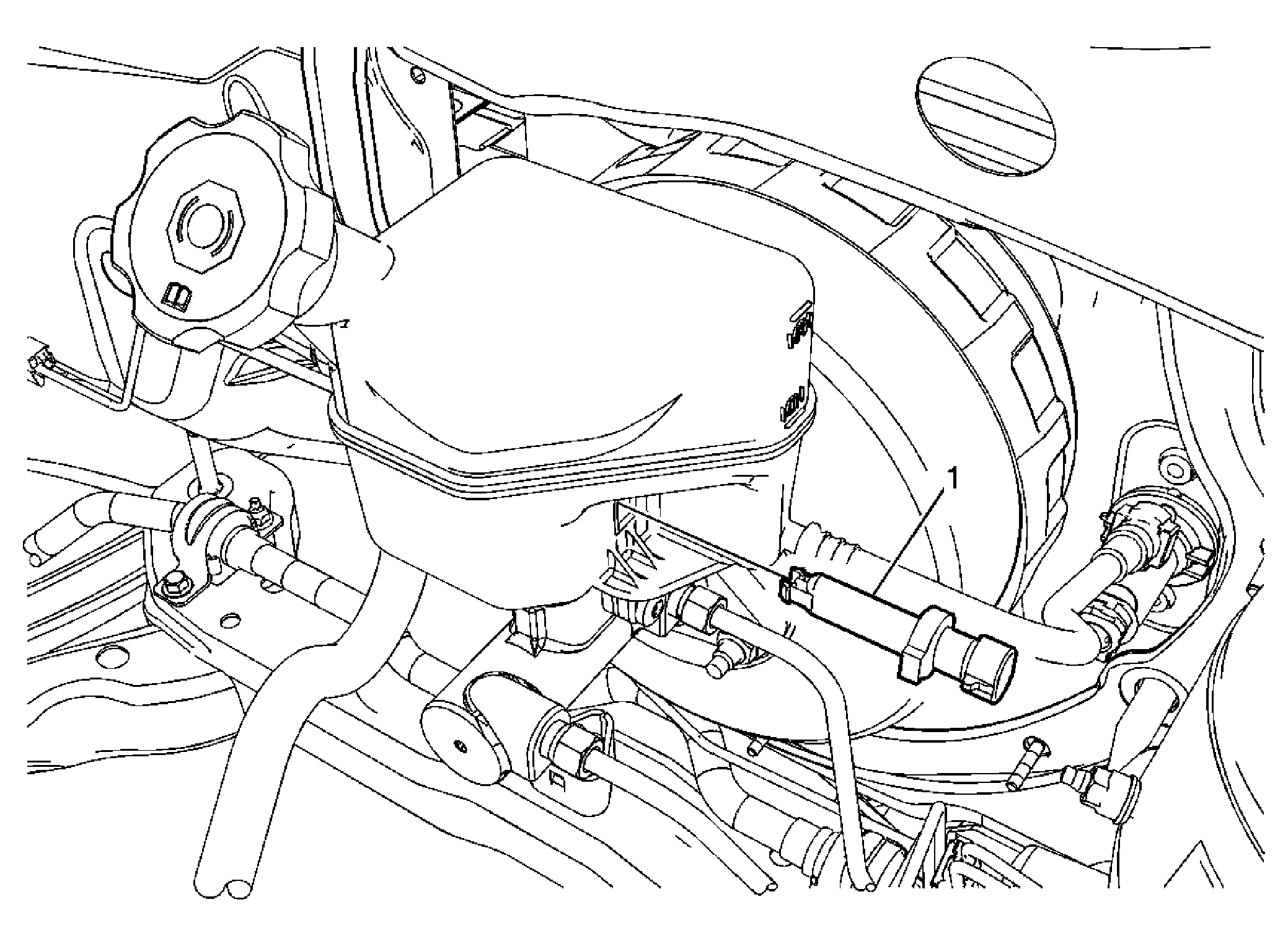

Brake Fluid Level Indicator Switch
Tip:
Compress the brake fluid level sensor locking tabs on the inboard side of the master cylinder reservoir and remove the sensor. |
