Removal Procedure
WARNING: This page is about a different car, the 2008 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect the fluid level in the master cylinder reservoir.
- If the brake fluid is midway between the maximum full point and the minimum allowable level, no brake fluid needs to be removed from the reservoir before proceeding.
- If the brake fluid is higher than midway between the maximum full point and the minimum allowable level, remove brake fluid to the midway point before proceeding.
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
- Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
- Install and firmly hand tighten 2 wheel nuts to opposite wheel studs in order to retain the rotor to the hub.
- Install a large C-clamp over the body of the brake caliper with the C-clamp ends against the rear of the caliper body and against the outboard brake pad.
- Tighten the C-clamp evenly until the caliper piston is compressed into the caliper bore.
- Remove the C-clamp from the brake caliper.
- Remove the lower brake caliper guide pin bolt (1).

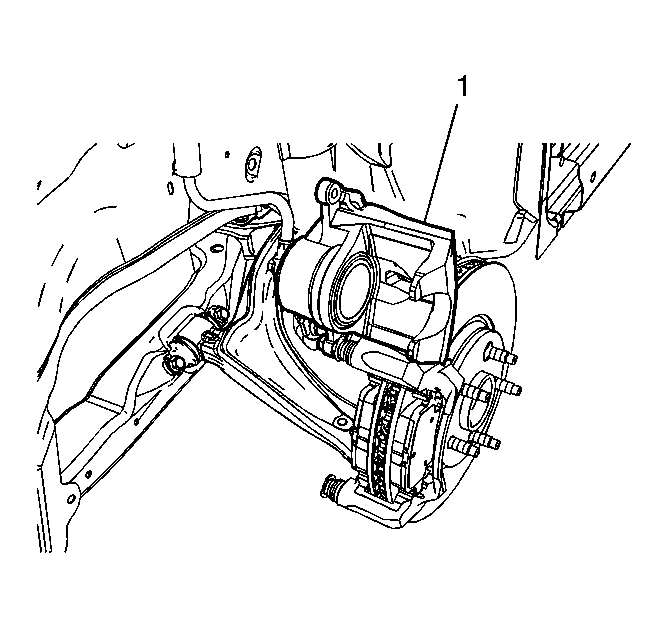

- Pivot the brake caliper (1) upward and support with heavy mechanics wire or equivalent.
- Remove the inboard brake pad (1).
Note the location of the brake pad wear sensor.
- Remove the outboard brake pad (2).
- Remove the disc brake pad retainers (1).
- Inspect the disc brake mounting and hardware. Refer to Front Disc Brake Mounting and Hardware Inspection .
NOTE:
Support the brake caliper with heavy mechanic wire, or equivalent, whenever it is separated from its mount and the hydraulic flexible brake hose is still connected. Failure to support the caliper in this manner will cause the flexible brake hose to bear the weight of the caliper, which may cause damage to the brake hose and in turn may cause a brake fluid leak.
