Liftgate Latch Replacement
Liftgate Latch Replacement

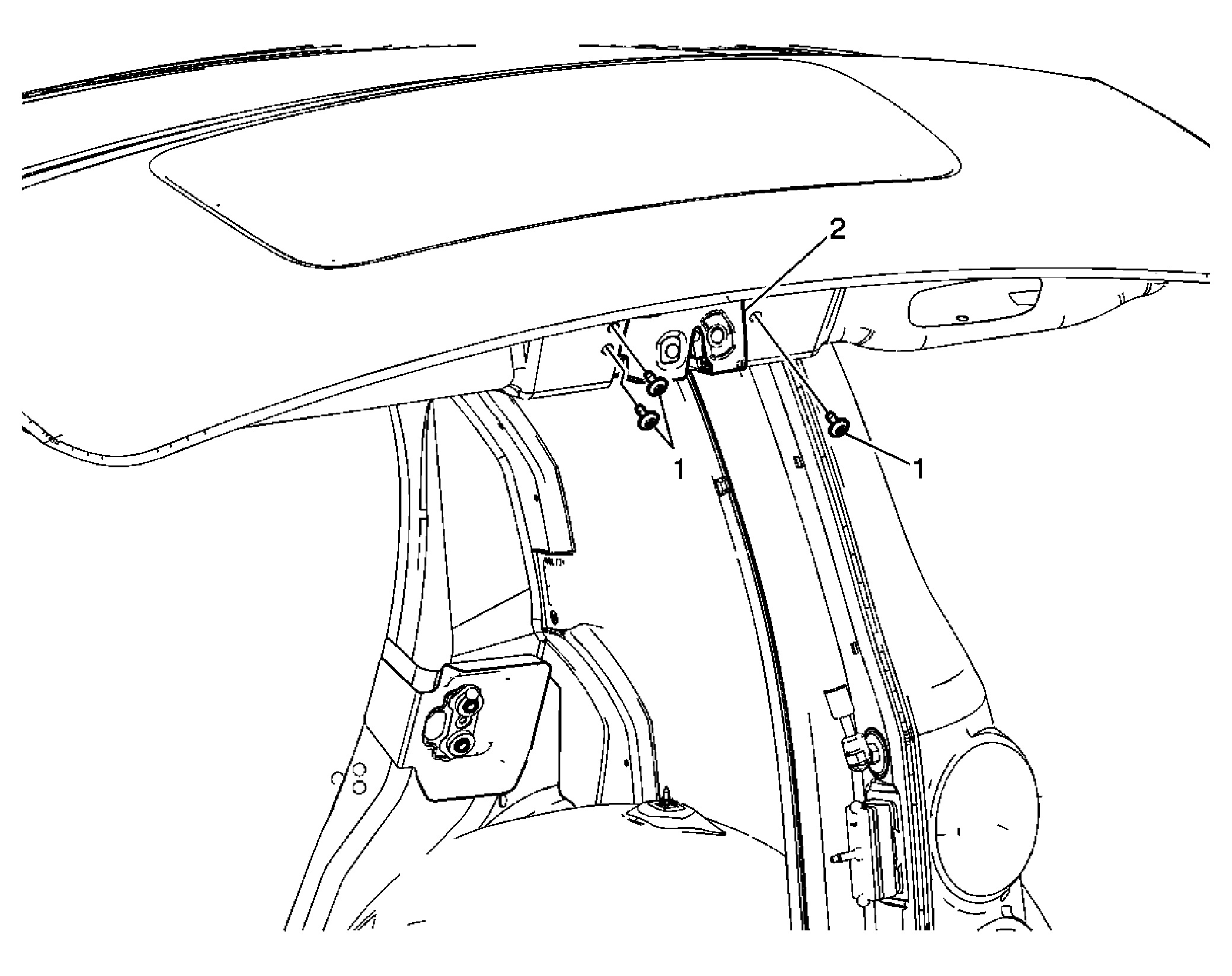

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the liftgate trim panel. Refer to Liftgate Trim Panel Replacement . |
|
| 1 | Liftgate Latch Bolts (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Liftgate Latch TIP: Disconnect the electrical connectors. |
