Liftgate Outside Handle Replacement
Liftgate Outside Handle Replacement

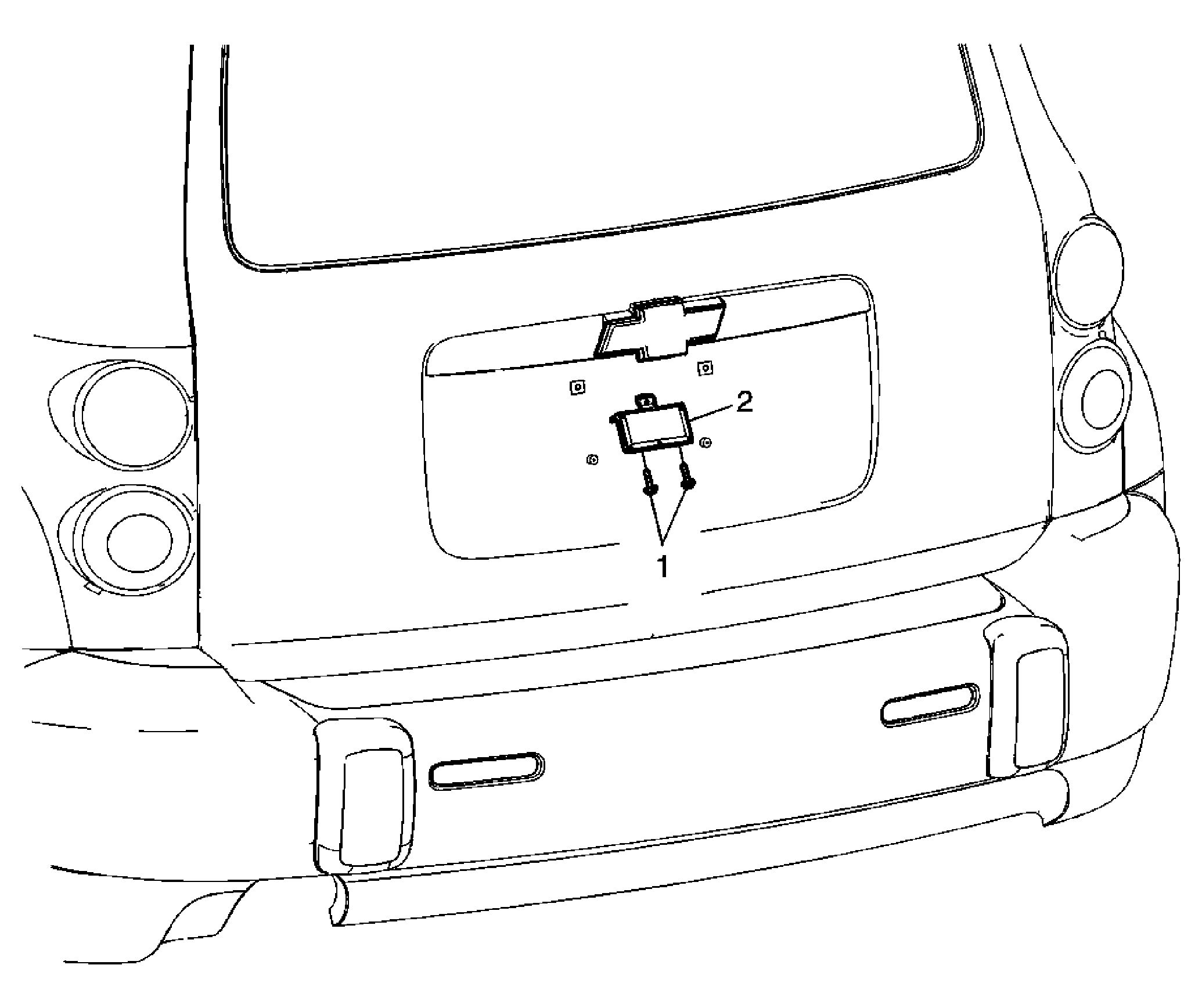

| Callout | Component Name |
|---|---|
| 1 | Liftgate Handle Bolts (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Liftgate Handle TIP: Disconnect electrical connector. |
