Front Seat Heater Control Module Replacement
Front Seat Heater Control Module Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front seat. Refer to Front Seat Replacement - Bucket . |
|

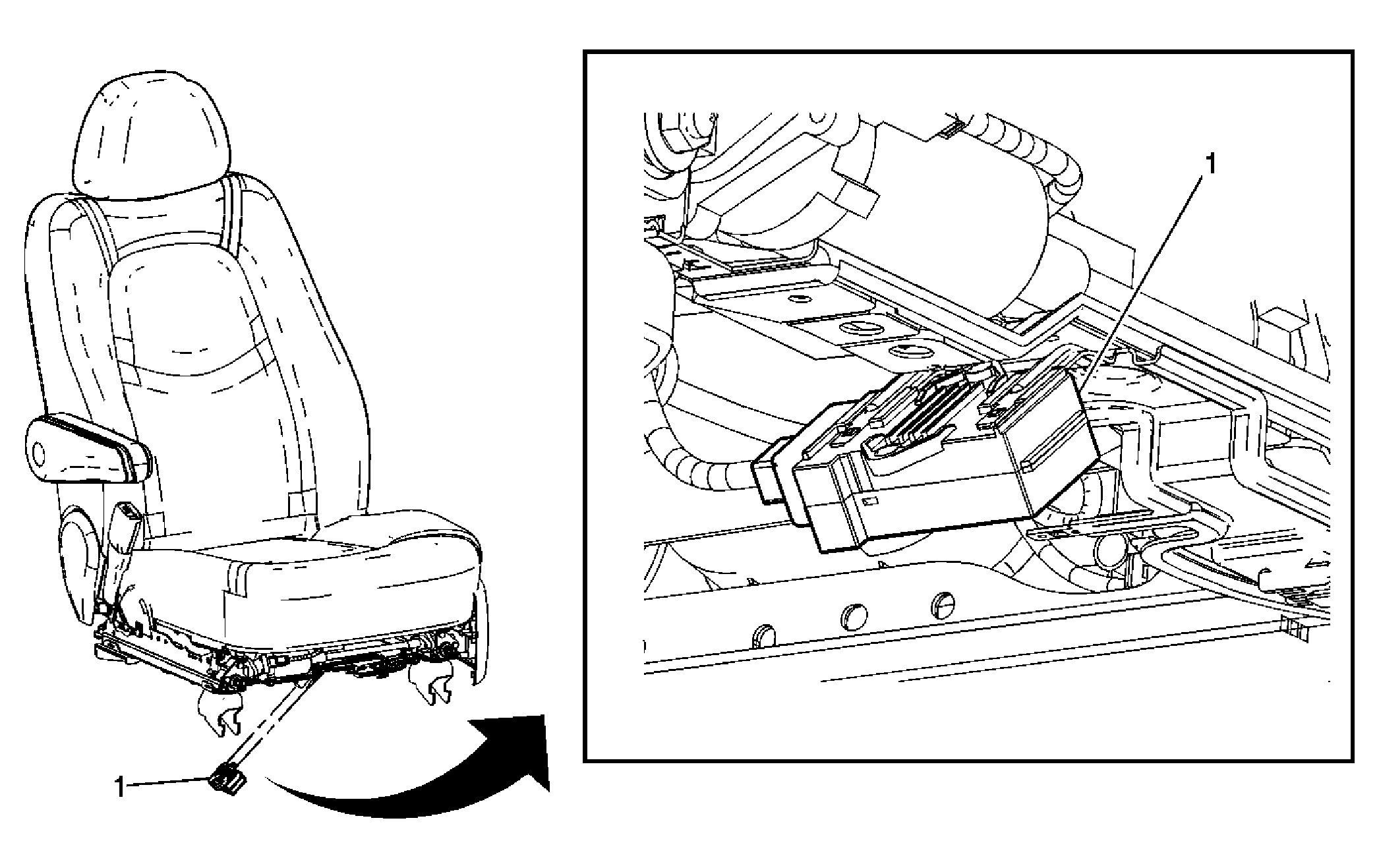

| 1 | Seat Heater Control Assembly Refer to Control Module References for programming and setup information. TIP: Release the two tabs on the bracket from the control module and disconnect the electrical connector to remove. |
