Starting System and Charging System Wiring Schematics: Charging

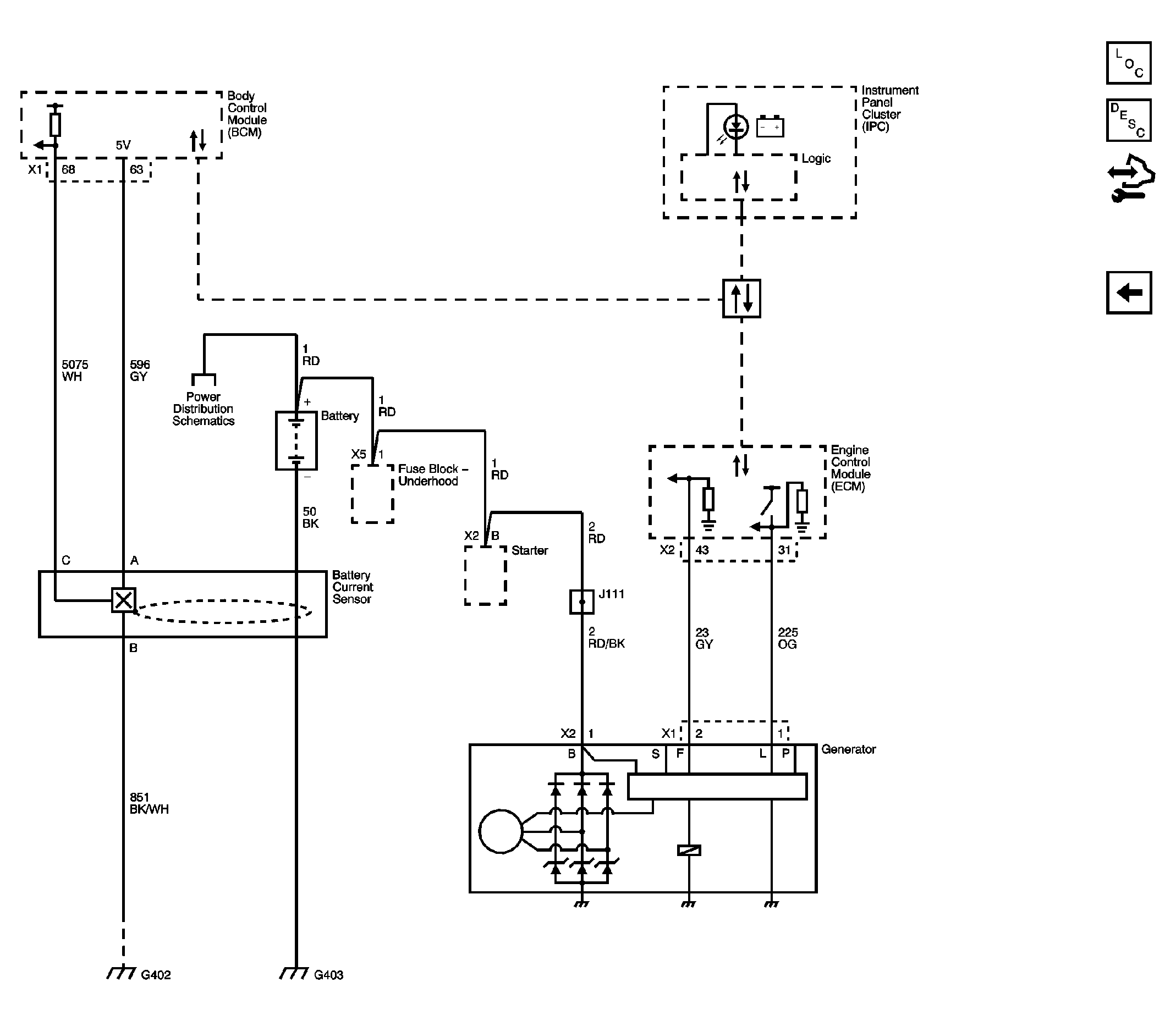

Fig 1: Charging System Wiring Schematic
GM2376967Courtesy of GENERAL MOTORS COMPANY
