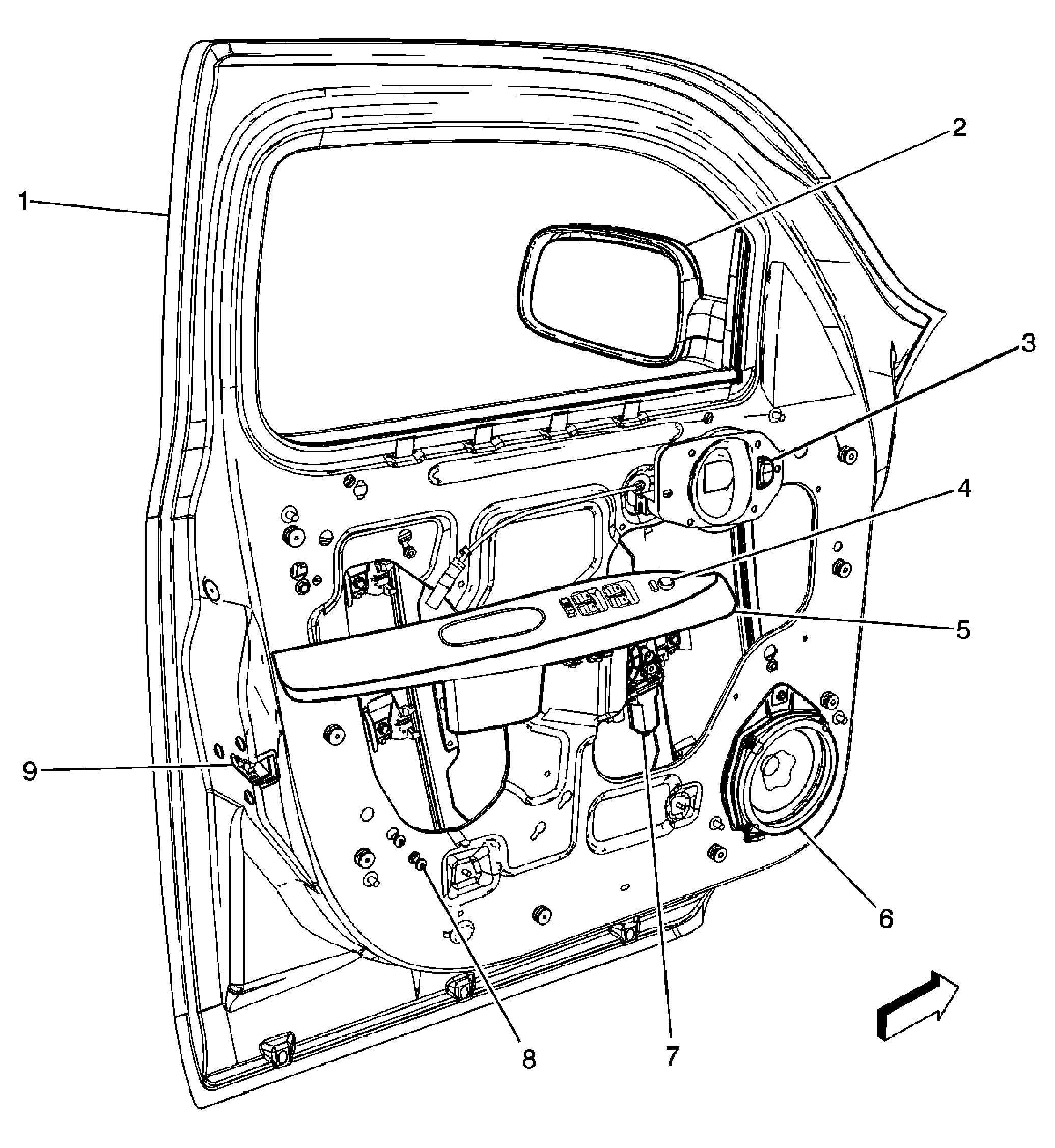

Driver Door Components
Driver Door Components
| Component Name | Callout |
|---|---|
| Door Frame | 1 |
| Outside Rearview Mirror Motor - Driver | 2 |
| Door Lock Switch - Driver | 3 |
| Outside Rearview Mirror Switch | 4 |
| Window Switch - Driver | 5 |
| Speaker - Left Front | 6 |
| Window Motor - Driver | 7 |
| Inflatable Restraint Side Impact Sensor (SIS) Left (ASF) | 8 |
| Door Latch - Driver | 9 |
