Engine Splash Shield Replacement

WARNING: This page is about a different car, the 2009 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

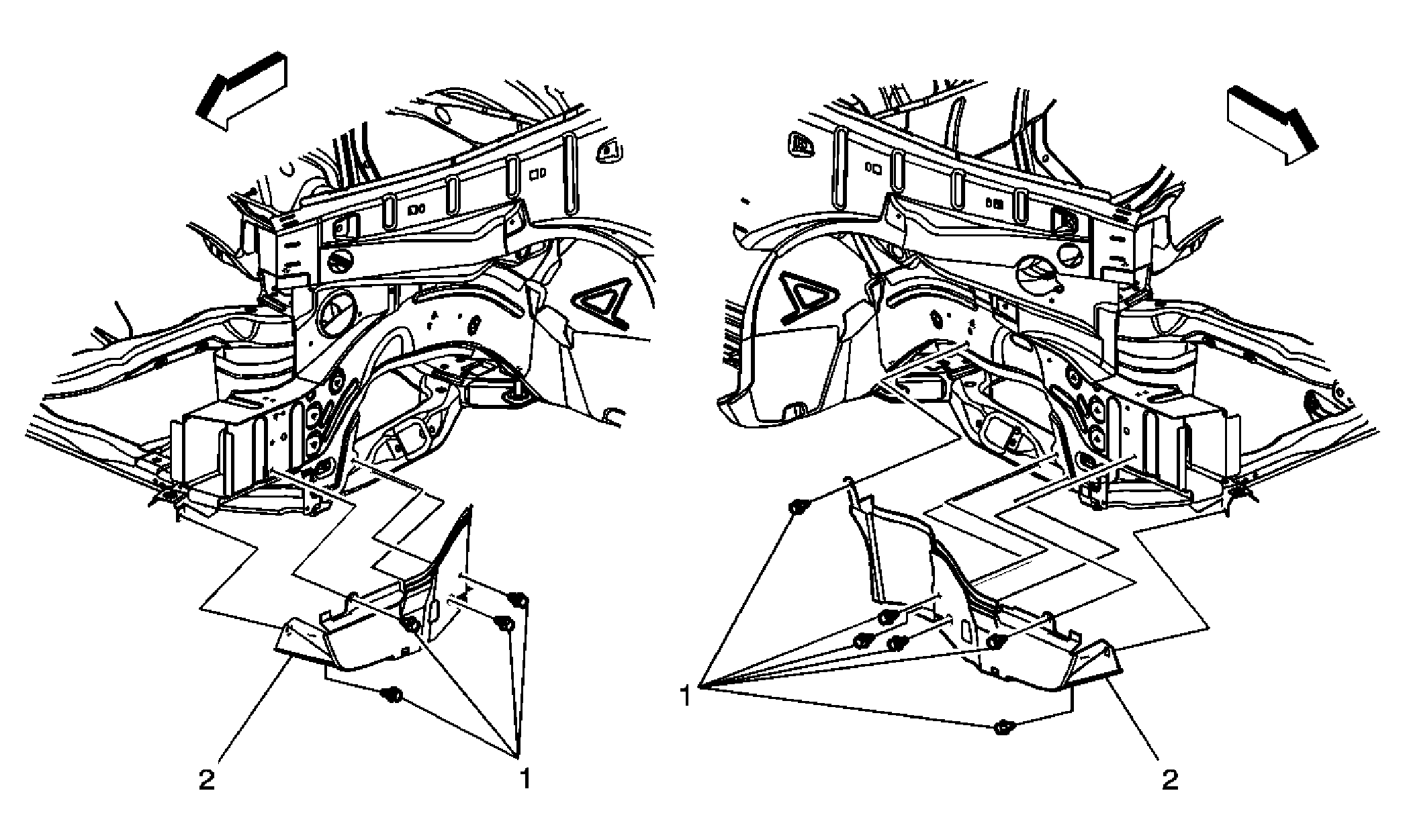

Fig 1: View Of Engine Splash Shield

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Lift and support vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
1	Engine Splash Shield Retainers (Qty: 5 right side, Qty: 4 left side) Tip: Use a flat-bladed tool to remove the push-in retainers.
2	Engine Splash Shield

Callout

Component Name

Preliminary Procedure

Lift and support vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .

Engine Splash Shield Retainers (Qty: 5 right side, Qty: 4 left side)
Tip: Use a flat-bladed tool to remove the push-in retainers.

Engine Splash Shield
