Front Fog Lamp Replacement

WARNING: This page is about a different car, the 2010 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

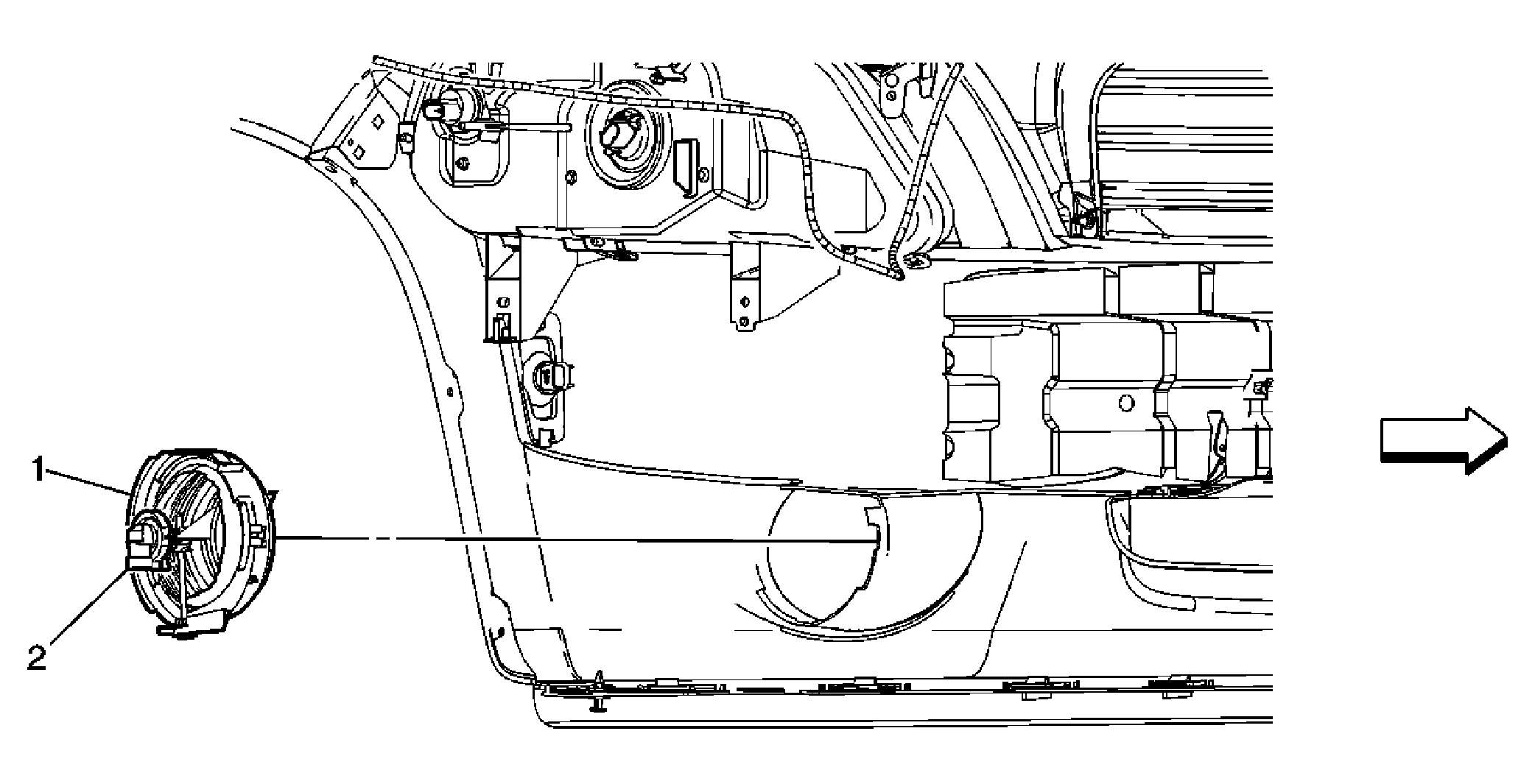

Fig 1: Front Fog Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the forward portion of either the LF or RF wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . Disconnect the fog lamp bulb electrical connector.
1	Front Fog Lamp Assembly Procedure Remove the adjuster screw from the outer locking ring fog lamp assembly. Release the four front bumper fascia tabs securing the outer ring to the front bumper fascia and slide the locking ring from the lamp horizontal pedestals. Disengage the lamp assembly from the locking tabs on the front bumper fascia. Pull the fog lamp housing, rearward from the front bumper fascia.
2	Front Fog Lamp Bulb Assembly WARNING: Refer to Halogen Bulb Warning . Tip: Turn the bulb socket a quarter turn counterclockwise in order to remove.

Callout

Component Name

Preliminary Procedure

Remove the forward portion of either the LF or RF wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
Disconnect the fog lamp bulb electrical connector.

Front Fog Lamp Assembly

Procedure

Remove the adjuster screw from the outer locking ring fog lamp assembly.
Release the four front bumper fascia tabs securing the outer ring to the front bumper fascia and slide the locking ring from the lamp horizontal pedestals.
Disengage the lamp assembly from the locking tabs on the front bumper fascia.
Pull the fog lamp housing, rearward from the front bumper fascia.

Front Fog Lamp Bulb Assembly

WARNING: Refer to Halogen Bulb Warning .

Tip: Turn the bulb socket a quarter turn counterclockwise in order to remove.
