Installation Procedure

    Fig 1: Air Cleaner Housing & Element
    GM1556019Courtesy of GENERAL MOTORS CORP.
  1. Install a NEW air filter element.
  2. Install the air cleaner housing cover.

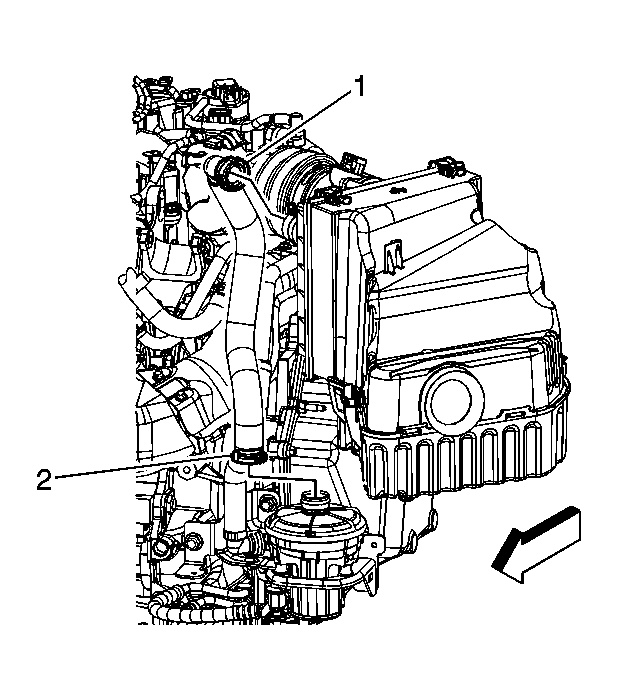

    3. Fig 2: Identifying Air Pump Hose Quick Connect Fitting
    GM1844046Courtesy of GENERAL MOTORS CORP.
  3. Engage the spring clamps (1) on top of the air cleaner housing.
  4. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
