Removal Procedure

    Fig 1: Identifying Electrical Connector
    GM1612884Courtesy of GENERAL MOTORS CORP.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Disconnect the left knock sensor electrical connector (1).

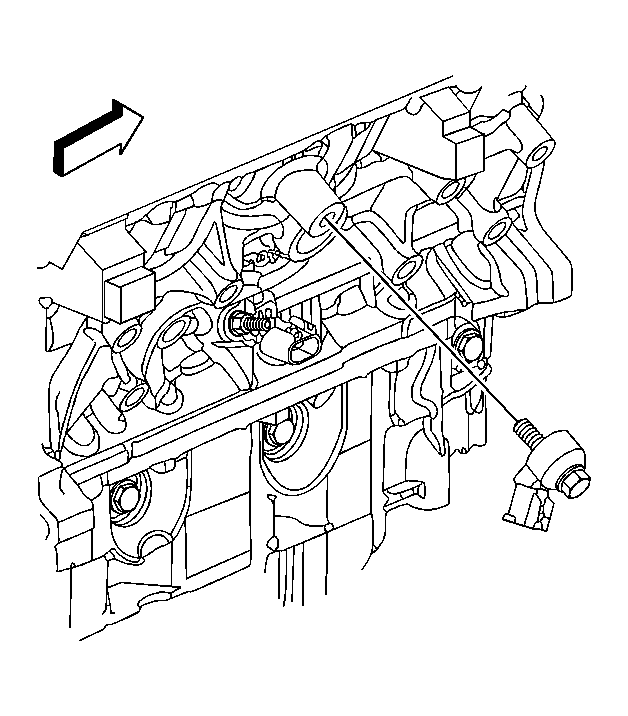

    3. Fig 2: Identifying Knock Sensor
    GM1800585Courtesy of GENERAL MOTORS CORP.
  3. Loosen and remove the knock sensor.
