Removal Procedure

    Fig 1: Identifying Electrical Connector
    GM1608498Courtesy of GENERAL MOTORS CORP.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Disconnect the right knock sensor electrical connector (2).

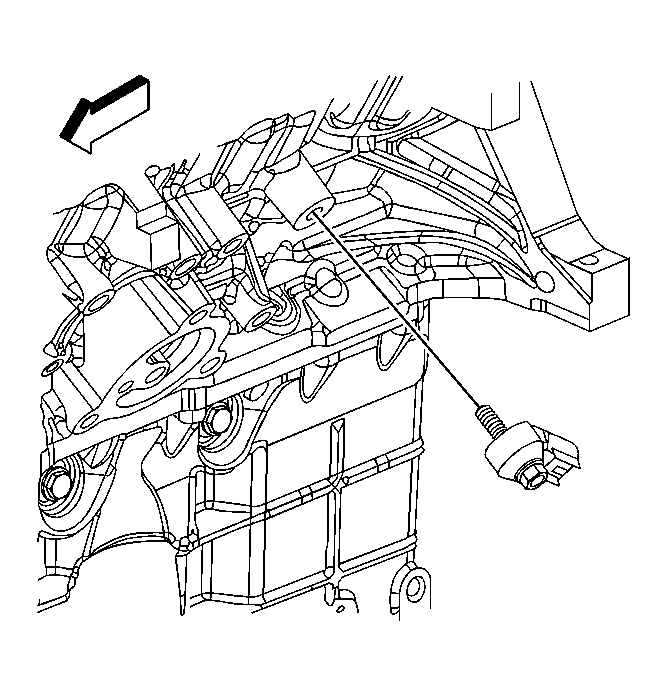

    3. Fig 2: Identifying Knock Sensor
    GM1800587Courtesy of GENERAL MOTORS CORP.
  3. Loosen and remove the knock sensor.
