Installation Procedure

Fig 1: View Of Battery Current Sensor & Battery Cable

Courtesy of GENERAL MOTORS CORP.

NOTE: Ensure that the tape tab is pointing towards the positive battery terminal prior to installation.

Slide the NEW battery current sensor (1) up onto the battery cable.
Using NEW tie straps and electrical tape, attach the battery current sensor to the positive battery cable.

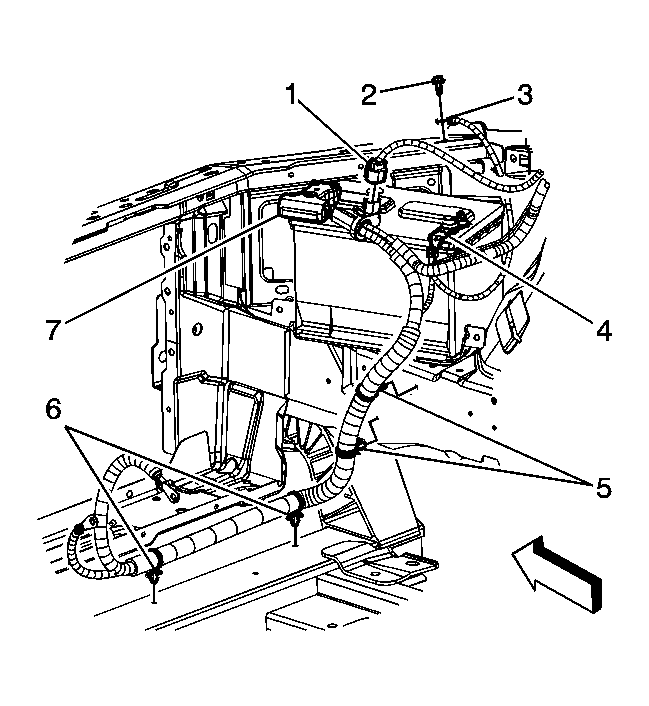

Fig 2: View Of Negative Battery Cable Terminal & Battery

Courtesy of GENERAL MOTORS CORP.

Install the positive and negative battery cable. Refer to Battery Positive and Negative Cable Replacement (LGD/LZE) .
Connect the I/P harness electrical connector (1) to the battery current sensor.
