Installation Procedure

    Fig 1: View Of The Generator
    GM1617023Courtesy of GENERAL MOTORS CORP.
  1. Install the generator.
  2. Install the generator bolt until snug.

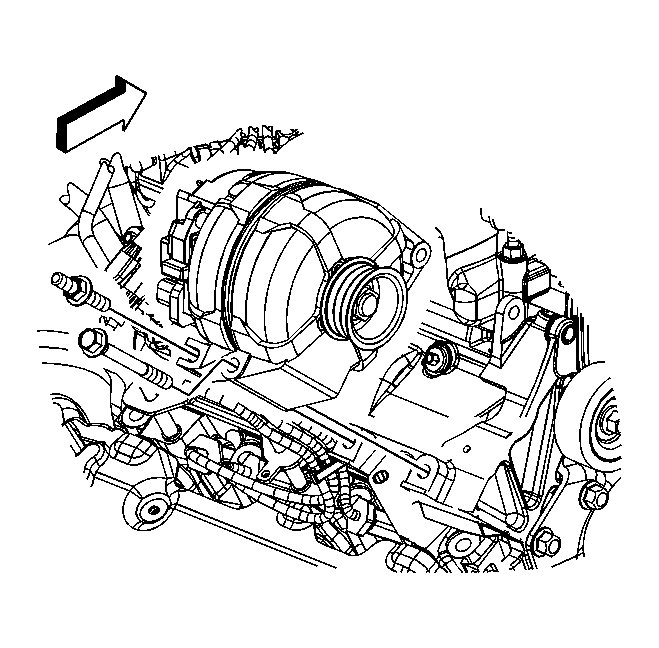

    3. Fig 2: View Of Generator Bolt And Stud
    GM1617020Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  3. Install the generator bolt and stud.

    Tighten:  Tighten the bolts/stud to 50 N.m (37 lb ft).

    4. Fig 3: View Of MAP Sensor, Generator And Ignition Coil Electrical Connectors
    GM1608869Courtesy of GENERAL MOTORS CORP.
  4. Connect the generator electrical connector (3).
  5. Install the engine harness terminal (4) to the generator.
  6. Install the generator output BAT terminal nut (5).

    Tighten:  Tighten the nut to 30 N.m (22 lb ft).

  7. Position the protective boot (2) to the generator output BAT terminal.
  8. Install the drive belt. Refer to Drive Belt Replacement for the 3.5L engine or Drive Belt Replacement for the 3.9L engine.
  9. Connect the negative battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (LGD/LZE) .
